Conformal Coating Defects Hub

Conformal coating defects can undermine PCB protection, reduce insulation resistance, and cause costly rework or field failures. This hub explains the most common defects, their causes, and how to prevent them—linking to detailed technical articles and inspection guidance.

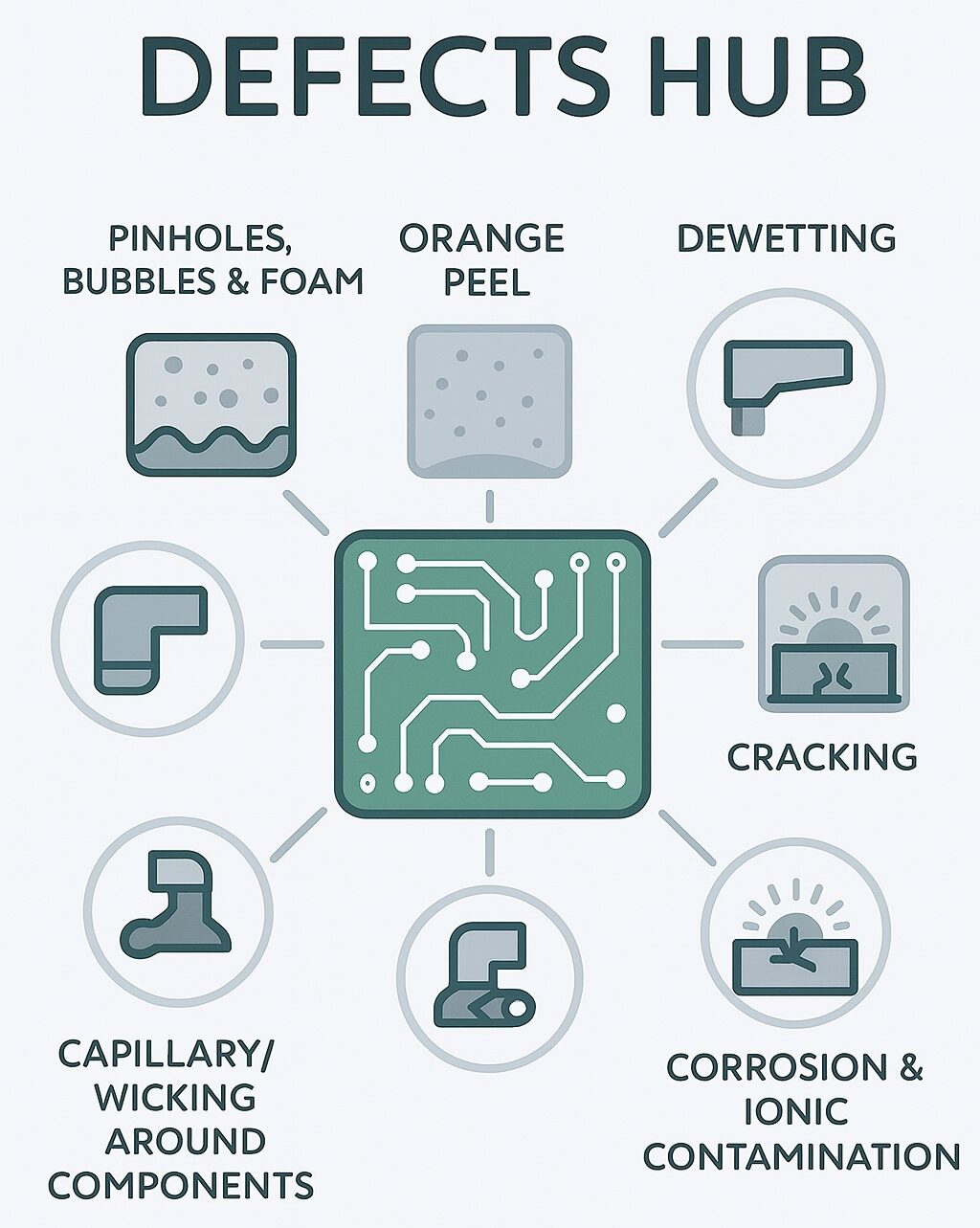

Infographic showing common conformal coating defects including pinholes, bubbles, orange peel, dewetting, delamination, cracking, corrosion, and capillary wicking around PCB components.

Pinholes, Bubbles & Foam

Gas entrapment during application, drying and curing leaves voids that weaken protection and allow moisture ingress. Common root causes: trapped solvent, high humidity, aggressive spray settings, or insufficient flash.

  • Stabilise viscosity and flash times; avoid over-wet passes.
  • Manage booth RH/temperature and atomisation pressure.
  • Verify drying and curing processes to prevent residual volatiles.

↑ Back to Index · ↗

Orange Peel

A dimpled texture driven by viscosity imbalance, spray atomisation issues, or low surface energy. Affects appearance and can trap contaminants.

  • Tune solvent balance, gun distance, and fan width.
  • Maintain substrate temperature and surface energy.
  • Use pattern boards to validate finish.

↑ Back to Index · ↗

Dewetting

The film pulls back into “islands,” leaving bare areas due to contamination or low surface energy (silicones/oils/surfactants).

  • Improve cleaning; validate ionic/residue levels.
  • Use adhesion promoters/primers where appropriate.
  • Control handling to avoid re-contamination.

↑ Back to Index · ↗

Delamination

Loss of adhesion between coating and substrate from poor prep, moisture ingress, or thermal/CTE stress.

  • Validate surface prep and primer compatibility.
  • Bake/dry substrates to remove absorbed moisture.
  • Qualify cure and thermal cycling against spec.

↑ Back to Index · ↗

Cracking

Fractures form when films are too thick, become brittle, or see high CTE mismatch/thermal shock—creating moisture paths.

  • Keep to spec thickness; manage solvent loss and cure.
  • Choose flexible chemistries where required.
  • Validate thermal profiles and cycling.

↑ Back to Index · ↗

Corrosion & Ionic Contamination

Residual ions plus moisture and bias drive electrochemical migration and dendrites—among the most damaging failure modes.

  • Qualify cleanliness (ROSE/IC/SIR) and tighten process control.
  • Seal edges/keep-outs; avoid entrapment under parts.
  • Select chemistries with proven barrier performance.

↑ Back to Index · ↗

Capillary / Wicking Around Components

Capillary action draws coating into gaps/under parts, breaching keep-outs and creating meniscus lines that impact function.

  • Optimise path/valve height and overlap; reduce over-wet passes.
  • Use fixtures/masking to block capillary routes.
  • Qualify with representative gap geometries.

↑ Back to Index · ↗
