Conformal Coating Standards Hub

IPC, IEC, UL, MIL and NASA guidance for coating materials, workmanship, electrical design and process control

This hub explains how the principal standards used around conformal coating and Parylene fit together.

No single standard controls every part of a coated electronics process. Different documents address different questions, including material qualification, assembly workmanship, creepage and clearance, polymeric-material safety, high-reliability process discipline and customer-specific contractual requirements.

The main standards discussed here include IPC-A-610, IPC-CC-830, MIL-I-46058C, IEC 60664-1, the UL 746 series and NASA-STD-8739.1. The purpose of this hub is to clarify what each document covers, what it does not cover and how it should influence design, coating selection, process control, inspection and qualification.

Standards should be treated as part of an engineering control system. Compliance with a material or workmanship document does not automatically prove that a coating process, assembly design or finished product is suitable for its actual operating environment.

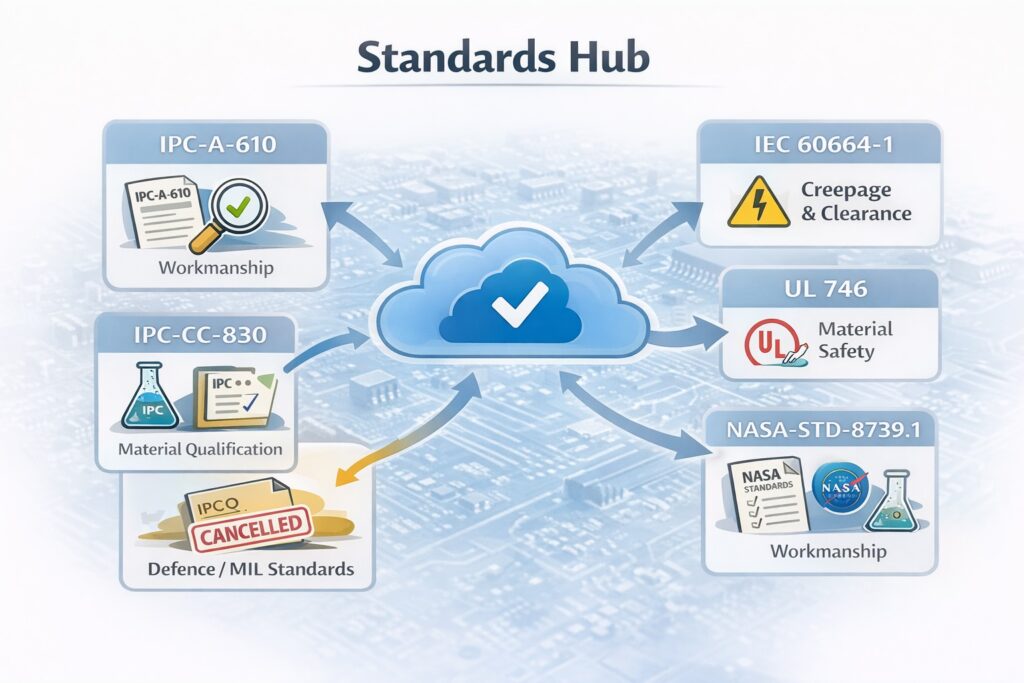

Infographic showing the conformal coating standards hub and how IPC-A-610, IPC-CC-830, MIL standards, IEC 60664-1, UL 746 and NASA-STD-8739.1 relate to inspection, material qualification, safety and design.

Overview of how IPC, MIL, IEC, UL and NASA requirements connect to coating-material qualification, workmanship, electrical design, process control and product safety.

Where Are You in the Standards Decision?

  • Defining whether the finished coating is acceptable β†’ IPC-A-610
  • Checking whether the coating material has passed a recognised qualification regime β†’ IPC-CC-830
  • Interpreting a legacy military drawing or MIL-SPEC requirement β†’ MIL-I-46058C and MIL Requirements
  • Reviewing creepage, clearance, pollution degree or coating credit β†’ IEC 60664-1
  • Reviewing polymeric-material safety, flammability or long-term thermal performance β†’ UL 746
  • Building a high-reliability coating process around workmanship discipline β†’ NASA-STD-8739.1
  • Translating standards into inspection rules β†’ Inspection & Quality Hub
  • Translating standards into PCB design decisions β†’ Conformal Coating Design Hub

What Each Standard Actually Controls

Standard Primary Role Typical Coating Question
IPC-A-610 Assembly workmanship and acceptability Is the applied coating acceptable on the finished assembly?
IPC-CC-830 Conformal coating material qualification Has the coating material passed a recognised qualification test regime?
MIL-I-46058C Legacy military material reference What should be done when a cancelled MIL specification still appears on a drawing?
IEC 60664-1 Insulation coordination, creepage and clearance Can coating influence electrical spacing or pollution protection assumptions?
UL 746 series Polymeric-material safety and long-term performance Does the polymeric material satisfy relevant safety, thermal or flammability requirements?
NASA-STD-8739.1 High-reliability polymeric application workmanship How should cleanliness, process control, documentation and inspection be integrated?

Important: These documents are not interchangeable. A coating material being qualified to IPC-CC-830 does not itself demonstrate acceptable workmanship, correct electrical spacing, adequate adhesion to a specific assembly or suitability for the final service environment.

IPC-A-610 – Acceptability of Electronic Assemblies

IPC-A-610 is an electronic-assembly workmanship and acceptability standard. In conformal coating applications, it helps define how the finished assembly should be assessed after coating.

  • Coverage and coating presence in required areas.
  • Coating on areas that should remain free from material.
  • Bubbles, voids, contamination and other visible conditions.
  • Coating boundaries, edge definition and meniscus behaviour.
  • Acceptance requirements linked to the applicable product class and customer specification.

IPC-A-610 does not replace a coating drawing, approved process instruction or customer-specific acceptance document. The assembly must still have clearly defined coated areas, keep-outs, permitted conditions and inspection methods.

For practical implementation, inspection teams need controlled lighting, magnification where required, UV inspection where supported by the coating, reference images, documented disposition rules and escalation criteria.

↑ Back to Index Β· Read IPC-A-610 Coating Guide β†—

IPC-CC-830 – Conformal Coating Material Qualification

IPC-CC-830 defines qualification and performance requirements for conformal coating materials. Its principal purpose is to demonstrate that a material has passed a recognised test programme under defined conditions.

  • Supports material qualification and comparison.
  • Provides a recognised performance framework for coating manufacturers and users.
  • Helps OEMs define approved coating-material requirements.
  • Supports supplier documentation and quality-assurance review.

Qualification of the material does not automatically qualify the production process. Cleaning, surface condition, application method, thickness, curing, masking, geometry and inspection all influence the performance of the coating on a real assembly.

Where an OEM specifies IPC-CC-830, the drawing or process specification should still identify the approved material, required thickness, coating boundaries, cure requirements, inspection criteria and any application-specific testing.

↑ Back to Index Β· Read IPC-CC-830 Guide β†—

MIL-I-46058C and Military Coating Requirements

MIL-I-46058C was historically used as a military specification for conformal coating materials, but it has been cancelled. It continues to appear on legacy drawings, approved-material lists and defence supply-chain documentation.

The presence of MIL-I-46058C on a drawing should not be interpreted casually. The manufacturer should establish whether the requirement is:

  • A legacy material call-out that has not yet been updated.
  • A contractual requirement that remains binding for the programme.
  • A shorthand reference to a previously approved coating material.
  • Part of a wider customer-specific qualification and documentation package.

Modern programmes often combine material qualification, workmanship criteria and contractual flow-downs using documents such as IPC-CC-830, IPC-A-610 and customer specifications. The exact replacement route must be agreed by the design authority or contracting organisation rather than assumed by the coating supplier.

↑ Back to Index Β· Read MIL Standards Guide β†—

IEC 60664-1 – Insulation Coordination, Creepage and Clearance

IEC 60664-1 addresses insulation coordination for equipment within its scope. It provides a framework for determining electrical clearances, creepage distances, pollution degree and insulation requirements.

Conformal coating can influence surface-insulation behaviour, but it should not be treated as an automatic substitute for sound electrical design. Any reduction in spacing or use of coating credit must be supported by the applicable standard, product requirements and controlled coating process.

  • Define the operating voltage and overvoltage category.
  • Establish pollution degree and environmental assumptions.
  • Review substrate material group and comparative tracking behaviour where relevant.
  • Confirm whether the coating is treated as supplementary, reinforced or pollution-protection support within the applicable design framework.
  • Control coating coverage, continuity, thickness, adhesion and production verification if performance depends on the coating.

The finished product remains responsible for demonstrating adequate electrical safety. Coating should be treated as part of the insulation system only where the design assumptions and process controls can be justified and verified.

↑ Back to Index Β· Read Clearance & Creepage Guide β†—

UL 746 Series – Polymeric Materials and Safety

The UL 746 series addresses the evaluation of polymeric materials used in electrical and electronic equipment. Depending on the applicable document and product route, relevant considerations may include flammability, electrical properties, environmental exposure and long-term thermal performance.

A UL recognition or material classification should be interpreted carefully. Engineers should confirm:

  • The exact material and formulation covered.
  • The tested thickness or thickness range.
  • The substrate and test configuration.
  • The relevant temperature, flammability or electrical rating.
  • Whether the recognition applies to the raw material, coated assembly or final product application.

Using a recognised coating does not automatically make the completed assembly or product UL compliant. Final compliance depends on the product construction, approved materials, application process, thickness, cure, spacing and certification requirements.

↑ Back to Index Β· Visit UL for Standards and Certification Information β†—

NASA-STD-8739.1 – Polymeric Applications Workmanship

NASA-STD-8739.1 provides high-reliability workmanship guidance for polymeric applications. Its value extends beyond aerospace because it demonstrates how coating reliability depends on disciplined preparation, process control, documentation and inspection.

  • Control cleanliness and contamination before applying polymeric materials.
  • Use trained and authorised personnel.
  • Define materials, preparation methods and application instructions.
  • Maintain traceability and objective process evidence.
  • Inspect against documented requirements rather than subjective appearance.
  • Control repairs, deviations and rework through an approved process.

NASA-style workmanship thinking does not mean copying a space standard into every commercial process. The useful lesson is that high reliability is achieved by controlling the complete system rather than relying only on final inspection.

↑ Back to Index Β· Read NASA Process-Control Guide β†—

How Standards Apply to Parylene Coating

Parylene is a vapour-deposited polymer coating, so the standards pathway may differ from that used for a conventional liquid conformal coating. The applicable requirements depend on the product, industry, coating grade, design authority and qualification plan.

A robust Parylene specification should normally define:

  • Parylene grade or approved material.
  • Nominal, minimum and maximum thickness.
  • Coated areas, masking boundaries and prohibited coating areas.
  • Cleaning, bake-out, adhesion promotion or plasma requirements where applicable.
  • Thickness-measurement method and witness-coupon requirements.
  • Inspection and acceptance criteria.
  • Application-specific electrical, environmental, chemical, thermal or biological testing.
  • Traceability, process records and deviation controls.

A generic statement such as β€œcoat to IPC standard” is normally insufficient because it does not define the Parylene grade, process, thickness, masking, adhesion or validation requirements.

↑ Back to Index Β· Read How to Specify Parylene Coating β†—

Standards Do Not Replace Process Control

A standards-compliant document set can still produce unreliable assemblies if the manufacturing process is unstable. Coating reliability depends on translating requirements into controls that operators and inspectors can execute consistently.
