Masking Molex Boots for Conformal Coating & Parylene
Reusable connector protection that helps prevent coating ingress and reduce masking labour
Reusable Molex masking boots help protect connector contacts during conformal coating and Parylene processing.
Connector masking is one of the most labour-intensive and defect-sensitive stages of coating. Poor masking can allow coating ingress into contact areas, create mating issues, increase inspection failures and generate unnecessary rework.
SCH uses reusable masking boots within its own conformal coating and Parylene coating services, so the boot solutions we recommend are based on practical production experience rather than catalogue suitability alone.
For repeated connector masking, reusable boots can provide faster application, more consistent sealing and lower total process cost than tape-based masking methods.

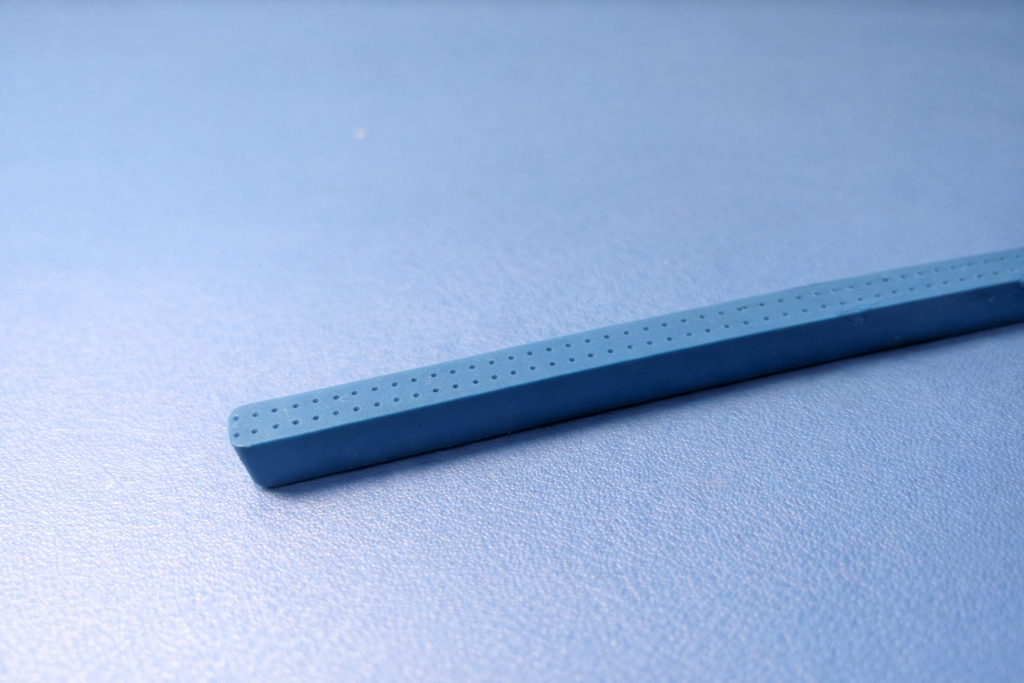

Reusable Molex masking boot helping prevent coating ingress into connector contacts during conformal coating and Parylene processing.
Production note: SCH recommends reusable connector boots where masking labour, connector contamination or repeatability issues make tape masking inefficient or unreliable. These are practical production tools, not simply catalogue masking accessories.
Why SCH Uses Reusable Connector Boots
Connector masking must protect the contact interface without creating delays, leakage paths or operator-dependent results. Tape masking can work for some applications, but it becomes slow and variable when the same connector has to be masked repeatedly.
Reusable boots help control this by providing a repeatable seal around the connector body.
- Faster application than manual tape masking
- More consistent connector protection between operators
- Reduced risk of coating ingress into contacts
- Reduced masking labour in repeat production
- Cleaner demasking compared with complex tape builds
- Reusable across multiple coating cycles, subject to process conditions and handling
These benefits are why reusable boots form part of SCHโs own production masking strategy for suitable connector types.
Key Benefits of Molex Masking Boots
- Protects Molex connectors during conformal coating and Parylene coating
- Helps prevent coating build-up on contact pins and mating surfaces
- Supports clean connector interfaces after processing
- Reduces masking time compared with manual tape methods
- Reusable construction can lower ongoing masking cost
- Compatible with many common coating chemistries, subject to process validation
- Supports repeatable masking across production batches
- Helps improve process consistency and operator repeatability
Process note: For selective coating, reusable boots can also help protect connector bodies from overspray and edge build-up, improving fit and mating reliability after processing.
When Reusable Boots Deliver the Greatest Value
Reusable connector boots normally provide the strongest value where the same connector is masked repeatedly or where connector contamination creates costly failures.
- The same Molex connector appears across repeated assemblies
- Connector contamination creates inspection failures or functional risk
- Masking labour is becoming a production bottleneck
- Tape masking is inconsistent between operators
- Parylene masking requires reliable sealing around connector interfaces
- Production volumes justify a reusable masking approach
Many customers initially adopt boots to improve connector protection, then find the longer-term benefit is reduced masking labour and improved repeatability.
Applications
Molex masking boots are used where connector areas must remain clean, open and electrically reliable after coating.
- PCB conformal coating masking
- Parylene coating masking
- Connector protection during selective coating
- Electronics manufacturing, repair and rework
- Repeat production where tape masking is slow or inconsistent
- High-reliability assemblies where connector cleanliness is critical
They are particularly relevant in aerospace, automotive, medical and electronics manufacturing environments where connector fit, contact integrity and repeatable masking control matter.
Custom Molex Boot Development
SCH supplies standard and custom-developed masking boots for Molex and other connector families. If a suitable boot does not already exist, our team can review connector drawings, dimensions, photographs or samples and assess whether a dedicated masking solution is practical.
- Single connector protection
- Multi-connector masking solutions
- Complex connector geometries
- Parylene sealing applications
- High-volume production masking systems
- Assembly-specific masking kits
Custom boots are often justified where masking labour, quality escapes, connector contamination or inspection failures are creating repeated production costs.
Request a Quote
To quote the correct Molex boot option quickly, send us the connector information and process details.
- Connector manufacturer and series, or a clear photo if unknown
- Molex part number if available
- Overall connector dimensions and pin count
- Estimated quantity required
- Whether the process is liquid conformal coating, Parylene coating or both
- Any known masking or coating ingress issues
Reuse note: Service life will vary depending on whether the boot is used in a liquid conformal coating process or as a sealing gasket in Parylene masking. Geometry, fit, chemistry, cure exposure and handling conditions all affect reuse life.
Build a Complete Masking System
Molex masking boots form part of a wider conformal coating masking strategy. Most production environments achieve the best results by combining masking materials according to the feature being protected.
- Reusable masking boots โ connectors and high-value components
- Masking tape โ straight boundaries, PCB edges and larger keep-out zones
- Masking dots โ vias, pads, grounding holes and circular keep-out areas
- Pre-cut masking shapes โ repeat custom features and non-standard geometries
- Liquid latex โ irregular features and complex masking transitions
Used together, these materials help manufacturers improve consistency, reduce labour time, reduce rework and prevent masking-related coating defects.
For deeper technical guidance, see the Conformal Coating Masking Hub.
Related Technical Guidance
Conformal Coating Masking Training
Masking is one of the most labour-intensive and risk-prone stages of conformal coating. SCH Services delivers hands-on training covering masking boots, shapes, tapes and dots.
Training can be delivered standalone or as part of a complete conformal coating programme, using real production examples and practical masking challenges.
Fast Links to Conformal Coating Masking Pages
Why Choose SCH Services?
SCH combines practical conformal coating and Parylene production experience with reusable masking solutions, custom boot development, training and process support.
- Reusable masking boots used within SCH coating services
- Practical support for Molex and other connector masking challenges
- Custom boot development for repeat production and complex connector geometries
- Support for tapes, dots, shapes, boots and hybrid masking approaches
- Training and consultancy for coating and masking process control
Disclaimer: This page provides general technical and product guidance only. Masking boot selection, reuse life, coating compatibility and sealing performance should always be validated against the specific connector geometry, coating material, process conditions and customer requirements.
