Conformal Coating Equipment Hub
Spray booths, dip systems, selective coating platforms and production equipment for PCB coating processes
This hub focuses on the equipment used to apply, control and validate conformal coatings.
Conformal coating equipment has a major influence on coating consistency, repeatability, throughput and long-term process stability. Spray booths, dip systems, selective coating platforms, valves, curing systems and inspection equipment all affect the quality and control of PCB coating operations.
This hub supports engineers selecting production hardware, configuring coating systems and understanding where different equipment types fit within modern coating processes.
Application method selection is covered separately within the Conformal Coating Application Methods Hub, while this equipment hub focuses specifically on machinery, tooling and process hardware.
Where are you in the equipment decision?
- Comparing equipment categories โ Core Equipment Categories
- Selecting valves for robotic coating โ Valve Selection
- Reviewing selective coating machinery โ Selective Robotic Coating
- Separating hardware from coating method โ Equipment vs Application Method

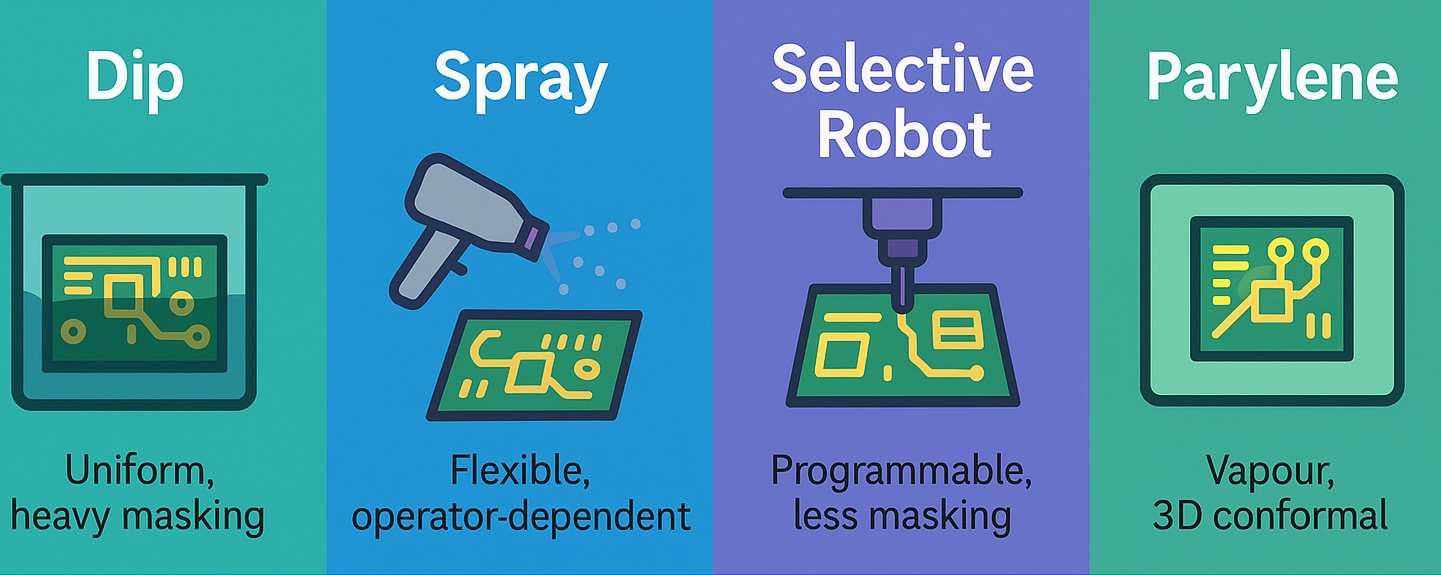

Comparison of major conformal coating equipment platforms including spray, dip, selective robotic and Parylene systems
Equipment Hub Index
| Topic | More | Article |
|---|---|---|
| Core Equipment Categories โ spray booths, dip systems, selective coating platforms and support equipment | ๐ | โ |
| Choosing the Right Valve for Selective Robotic Coating โ valve technologies and coating flow behaviour | ๐ | โ |
| Selective Robotic Conformal Coating Best Practices โ programming, fixturing and production control | ๐ | โ |
| Conformal Coating Spraying with a Spray Gun โ spray guns, airflow and booth control | ๐ | โ |
| Conformal Coating Dipping Process Controls โ dip system setup, immersion and withdrawal control | ๐ | โ |
| Equipment vs Application Method โ separating machinery choice from process route selection | ๐ | โ |
Core Conformal Coating Equipment Categories
Different coating processes require different equipment platforms. The correct hardware depends on PCB complexity, coating chemistry, throughput requirements, masking burden, process control strategy and inspection requirements.
- Spray booths: controlled airflow, overspray capture and operator protection during manual or semi-automated coating.
- Dip systems: repeatable immersion and withdrawal control for full-board coating applications.
- Selective coating platforms: robotic motion, valves, programming and fiducial systems for defined coating areas.
- Inspection and support equipment: UV inspection, drying cabinets, curing systems and thickness measurement tools.
Choosing the Right Valve for Selective Robotic Coating
Valve selection affects coating edge definition, flow behaviour, cycle time and repeatability. The correct valve depends on the coating material, required pattern width, application speed and keep-out geometry.
- Compare atomised spray, film coating and needle valve behaviour.
- Match valve choice to viscosity, coating chemistry and required deposit control.
- Validate bead width, edge definition and cornering on representative assemblies.
- Include purge, shut-off and calibration routines in the production process.
Selective Robotic Conformal Coating Best Practices
Selective robotic coating equipment reduces manual masking burden, but it does not remove process risk. Programming, fixturing, nozzle management and datum control must be managed carefully.
- Use stable fixturing and repeatable board location.
- Control program libraries, recipes and revision changes.
- Use fiducials, verification boards and inspection feedback where appropriate.
- Review coating spread, nozzle height, overlap and edge definition before production release.
Spray Guns, Spray Booths and PCB Coating Equipment
Spray coating equipment must control airflow, atomisation, material delivery and overspray. Booth setup, spray gun condition and operator technique all influence coating quality.
- Control atomisation pressure, fan pattern and material feed.
- Use suitable spray booths for airflow, filtration and overspray capture.
- Maintain consistent spray distance, overlap and coating passes.
- Link spray equipment setup to viscosity, flash-off and inspection results.
Dip Systems and Process Control
Dip coating systems support repeatable immersion and withdrawal control, but stable results depend on bath condition, speed control, viscosity, drainage and masking strategy.
- Control immersion, dwell, withdrawal speed and drainage position.
- Monitor bath condition, solvent loss, contamination and viscosity.
- Validate edge build, pooling and capillary behaviour on representative assemblies.
- Use test coupons, thickness checks and inspection data to support production control.
Equipment vs Application Method
This hub focuses on the machinery and hardware used in coating operations. Application method selection is a separate engineering decision.
For example, selective coating is an application method, while selective coating robots, valves and fiducial systems are equipment categories. Similarly, dip coating is a process route, while dip tanks, lifting systems and viscosity monitoring systems are equipment elements.
For process-led guidance on how coatings are applied and where each route is most suitable, use the Conformal Coating Application Methods Hub.
How Equipment Links to the Wider Process
Equipment selection should always be linked to wider process control, inspection and production stability considerations. Hardware should support repeatability rather than simply maximise throughput.
