Advanced Functional Coatings for Electronics & Precision Components
Low-build coating strategies for surface control, selective protection, and application-led performance
This page is the top-level hub for SCHβs advanced functional coatings platform, linking application pathways, material strategies, and low-build coating routes for electronics and precision components.
Why Advanced Functional Coatings Are Used
Advanced functional coatings are used where traditional conformal coating or Parylene introduce limitations in thickness, masking complexity, or surface performance.
In many applications, the requirement is not increased coating thickness, but a controlled change in surface behaviour such as water repellency, oil resistance, contamination control, reduced fouling, or preservation of electrical and mechanical function.
These coatings typically operate at sub-micron to low micron thickness, modifying surface properties rather than forming a conventional barrier layer.
Where They Fit
This makes them particularly relevant where selective performance is required without excessive material build-up, complex masking, or the process constraints associated with thicker coating systems.
How This Fits Within SCHβs Coating Platform
Within SCHβs coating platform, advanced functional coatings sit alongside conformal coating services and Parylene coating solutions, forming part of a wider application-led coating strategy.
This page acts as a decision framework for selecting between hydrophobic, ultra-thin, PFAS-free, and nano coating routes.
Advanced functional coatings are the broader decision framework, while nano coatings are one of the practical technology platforms used to deliver these low-build surface performance routes.

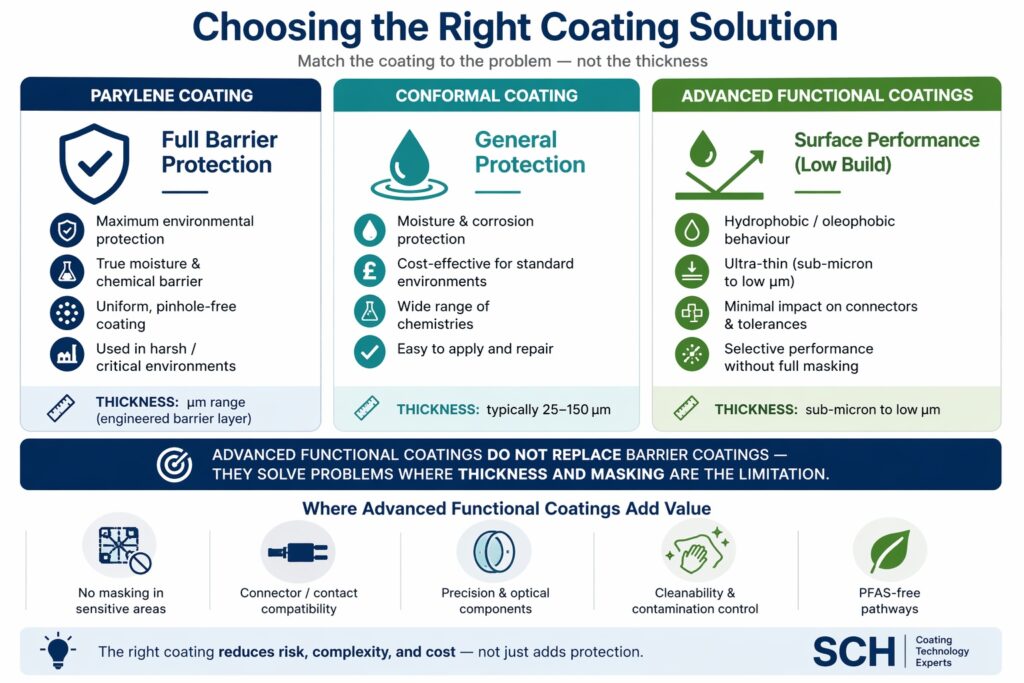

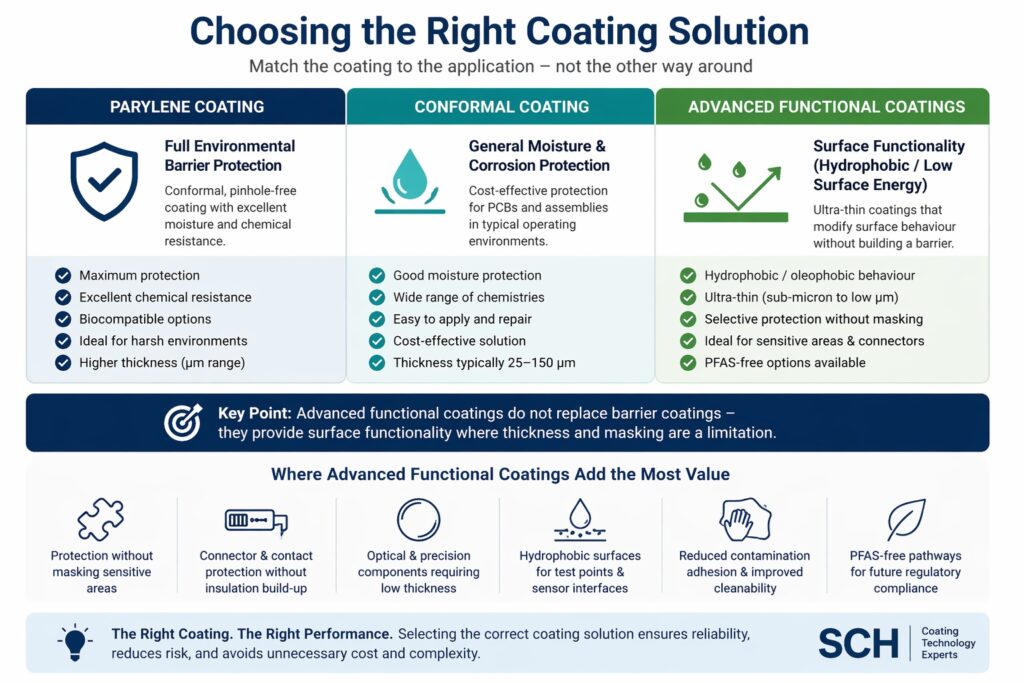

The diagram below compares advanced functional coatings with conformal coating and parylene, showing where low-build surface performance fits within electronics coating strategies.
Advanced functional coatings provide low-build surface performance where conformal coating or parylene would add unnecessary thickness or process complexity.
Where Advanced Functional Coatings Fit
Advanced functional coatings are not a replacement for Parylene or conformal coating. They solve different problems and should be selected based on application requirements rather than coating type alone.
Correct selection requires understanding both the protection requirement and the limitations of each coating approach.

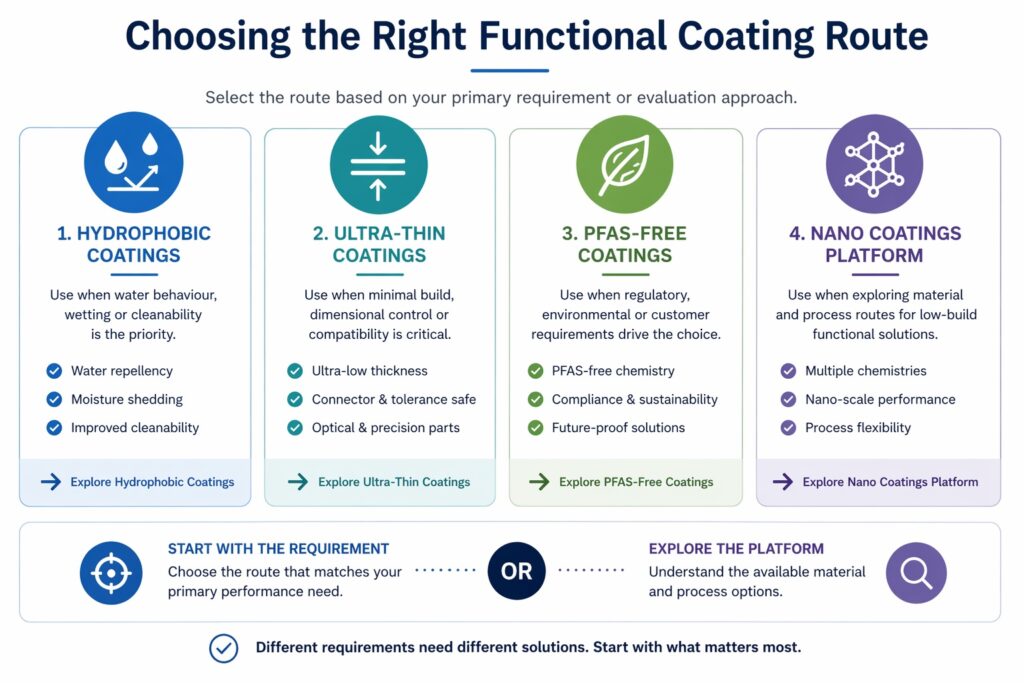

Coating Selection Pathways
Advanced functional coatings are best selected by starting with the primary problem to be solved.
Hydrophobic Pathway
Used where water repellency, wetting control, moisture shedding, or easier cleaning are the main objectives. See Hydrophobic Coatings.
Ultra-Thin Pathway
Used where coating thickness itself becomes the constraint and the main requirement is minimal dimensional impact. See Ultra-Thin Coatings.
PFAS-Free Pathway
Used where regulatory, environmental, or customer requirements drive selection away from fluorinated chemistry. See PFAS-Free Coatings.
Nano Coatings Platform
Used where the selected route requires practical material and process options, including room-temperature fluoropolymer systems, UV-cure systems, durable sub-micron coatings, and other low-build chemistry routes. See Nano Coatings.
Surface Performance Outcomes
Advanced functional coatings are best understood in terms of the surface behaviour they deliver rather than the material alone.
Hydrophobic Performance
Designed to repel moisture, reduce wetting, and support contamination shedding. This is often the first route considered where water behaviour is affecting performance.
Oleophobic and Anti-Smudge Performance
Low surface energy coatings can reduce oil adhesion, fingerprints, and residue build-up, improving cleanability and handling performance on touch surfaces, displays, optics, and user interfaces.
Anti-Fouling and Contamination Control
Where contamination retention, process residues, or handling effects are the main issue, coatings may be selected to reduce adhesion and make the surface easier to keep clean.
Low Surface Energy and Non-Wetting Systems
For more demanding applications, coatings can be engineered to minimise adhesion further, supporting specialist requirements such as reduced fouling or controlled surface interaction.
High-Performance Hydrophobic Systems
Some applications may explore superhydrophobic behaviour, but this is a specialised case and must be evaluated carefully. Extremely high contact angle performance can create durability, handling, or process limitations, so it is not automatically the best industrial solution.
Application Clusters
Advanced functional coatings can also be grouped by application type, helping define the most appropriate route early.
Electronics & PCB Assemblies
Used where connector function, selective coverage, contamination control, or low-build protection must be balanced carefully.
Optics, Glass, and Displays
Used where clarity, anti-smudge performance, cleanability, and surface durability are critical.
Sensors and Precision Components
Used where tight tolerances, surface interaction, or contamination sensitivity make conventional coating thickness impractical.
Membranes, Mesh, and Functional Surfaces
Used where the coating must change surface behaviour without closing fine structures or adding excessive thickness.
Technology Routes Within This Platform
SCHβs advanced functional coating platform includes multiple technology routes, selected according to performance requirements, process constraints, and material strategy. Many of these sit within the wider nano coatings platform.
- LT Series β room-temperature fluoropolymer route for simple low-build hydrophobic and oleophobic surface performance
- UVX β UV-cure route for rapid processing and harder low-build surface protection
- OPX β durable sub-micron route for abrasion resistance and long-term surface stability
- PFAS-free coatings β alternative chemistry routes where regulatory or material strategy requires non-fluorinated options
These are different execution routes within the platform, not interchangeable labels. Final selection depends on the real performance objective, not just the coating family.
Key Capabilities
Ultra-Thin Film Formation
Typical thickness ranges from sub-micron to a few microns, allowing protection or surface modification without affecting mechanical tolerances, connectors, or electrical interfaces.
Reduced Masking Requirements
Low film build allows many assemblies to be processed with reduced masking complexity compared with traditional coating systems.
Compatibility with Complex Geometries
Suitable for dip, spray, wipe, UV-cure, and other controlled application routes across complex assemblies and fine features.
Selective Surface Performance
Can be used to control wetting, fouling, oil retention, contamination build-up, or handling effects without requiring a full encapsulating barrier.
PFAS-Free Pathways
Alternative chemistries are available where regulatory or material strategy requires non-fluorinated solutions.
Key point: Advanced functional coatings provide surface performance, not full environmental protection. Selection must be based on the actual failure mode, not coating type alone.
When to Engage SCH
- When coating thickness is causing functional or tolerance issues
- When hydrophobic, oleophobic, or contamination-control performance is the real requirement
- When PFAS-free alternatives need technical validation
- When it is unclear whether conformal coating, parylene, or a low-build route is the correct solution
Process Considerations
- Surface preparation and cleanliness directly affect coating performance
- Application method must match geometry, throughput, and repeatability needs
- Viscosity, withdrawal speed, and chemistry influence final film thickness
- Curing conditions define final surface properties and durability
- Validation testing is required for real-world performance
Coating selection and process development should be treated as a combined activity, particularly where surface performance requirements must be balanced against process constraints. SCH supports this through consultancy, training, and coating services.
Common Failure Modes
- Incorrect expectation of barrier protection from a surface-modifying coating
- Loss of water or oil repellency due to wear, contamination, or handling
- Inconsistent performance caused by poor surface preparation or uneven application
- Durability mismatch between the selected chemistry and the actual operating environment
