Thickness Verification Plans (AQL, Coupons, SPC)

How to control coating build using sampling plans, witness coupons and SPC

Conformal coating thickness verification confirms that the applied film build is suitable for the design intent, reliability target and customer requirement.

Thickness control should not rely on occasional measurement alone. It should use a defined plan that combines sampling, witness coupons, measurement methods and trend monitoring.

UV inspection confirms coating presence and boundary definition, but it cannot verify film thickness.

This topic forms part of a wider coating process control framework. See the Electronic Coating Process Control for Reliability guide for full context.

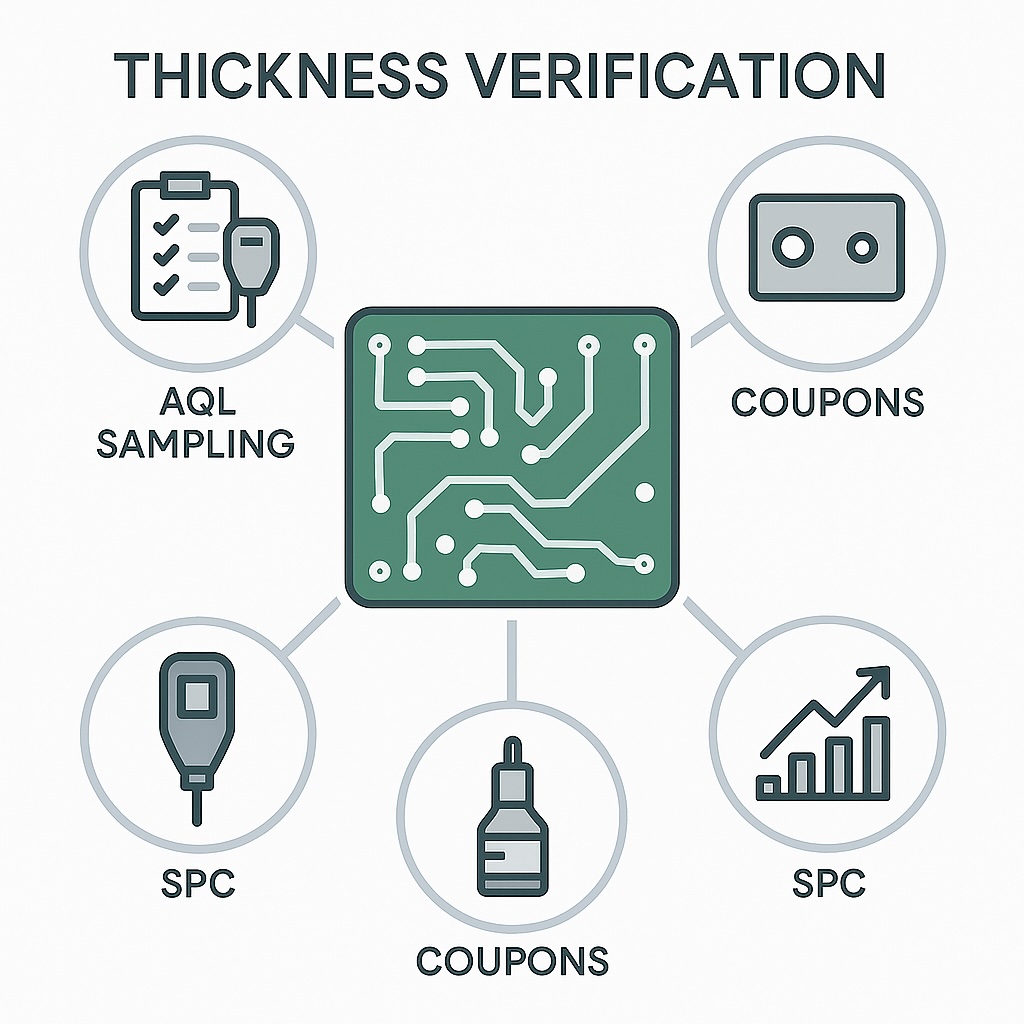

Infographic showing conformal coating thickness verification methods with AQL sampling, test coupons, SPC monitoring and measurement tools

Thickness verification combines sampling, coupons, SPC monitoring and suitable measurement tools to control coating build.

Why thickness verification matters

Thickness directly affects coating performance. If the film is too thin, insulation or barrier protection may be insufficient. If the film is too thick, defects such as cracking or delamination can occur.

Thickness verification supports defensible acceptance decisions and helps prove that the coating process is stable, especially where customers require objective evidence.

It should be reviewed alongside surface preparation, test coupons and witness boards, and wider process validation.

AQL sampling for conformal coating thickness verification

AQL, or Acceptable Quality Level, provides a statistically based plan to check a defined number of boards in each lot.

Thickness measurements can be taken at defined locations across the AQL sample to support batch conformity without measuring every unit.

  • Choose inspection levels and AQL values appropriate to product risk.
  • Define measurement locations such as edges, accessible pads, high-risk areas and representative coating zones.
  • Specify the measurement method and acceptance limits before production starts.
  • Escalate to tightened sampling when trends drift or failures occur.

Key point: AQL is a sampling method, not a process control method by itself. It must be supported by defined measurement locations, reaction rules and process evidence.

Witness coupons for conformal coating thickness verification

Witness coupons and test coupons allow repeatable measurement without relying only on customer hardware.

Coupons can reflect the coating process window, including application method, viscosity, environment, cure and chamber loading.

  • Use coupon geometries that reflect component density, surface finish and coating challenges.
  • Capture pre-cure and post-cure readings if solvent loss affects final build.
  • Use coupons where destructive measurement or cross-sectioning may be required.
  • Archive coupon data and images for traceability and customer evidence packs.

For deeper guidance, see Test Coupons & Witness Boards.

SPC for conformal coating thickness verification

SPC, or Statistical Process Control, tracks thickness over time so drift and special-cause variation can be detected before defects escape.

SPC is most useful when thickness data is collected consistently from defined locations and linked to a reaction plan.

  • Define control limits from stable baseline data.
  • Log key inputs such as viscosity, temperature, line speed, cure profile and batch conditions.
  • Use control charts to identify drift, instability or special-cause events.
  • Trigger corrective actions such as maintenance, recipe review, retraining or process hold when rules are violated.

SPC data must lead to action. Recording data without reaction rules creates paperwork, not control.

Thickness measurement methods

The correct measurement method depends on coating type, substrate, thickness range, accessibility and whether destructive testing is acceptable.

  • Eddy-current gauges: fast, non-destructive readings on suitable metallic substrates.
  • Optical interference / reflectometry: non-contact measurement for transparent coatings, Parylene and ultra-thin films.
  • Destructive cut-back and microscopy: useful on coupons or test pieces where detailed validation is required.

For reliable results, instruments should be calibrated to the substrate and coating system. Reference standards or coupons should be used before production measurement to support accuracy and repeatability.

Summary

Robust conformal coating thickness verification combines AQL sampling, witness coupons, SPC monitoring and fit-for-purpose measurement tools.

The goal is not simply to prove that one board passed. The goal is to show that the coating process is capable, stable and producing the required film build over time.
