Issues such as insufficient conformal coating coverage occur when the coating fails to fully protect all required PCB surfaces, leaving thin, weak, or bare areas. A common form is shadowing, where geometry, orientation, or application path prevents coating from reaching certain zones.

The defect typically presents as missed or uncoated areas, UV weak zones, or patchy coverage adjacent to components, leads, or vertical features. These exposed or under-built areas are a frequent root cause of moisture ingress, corrosion, and electrical leakage.

This page focuses specifically on coverage loss due to access and geometry. If coating has flowed away into gaps or under components, see capillary (wicking). If coating is present but pulled back into circular bare zones, see
de-wetting.

Article Quicklinks

Topic	More
Definitions: what insufficient coverage and shadowing mean	🔗
Root Causes: geometry, access and application limit	🔗
Prevention: application strategy and process controls	🔗
Troubleshooting & Diagnosis	🔗

What is Insufficient Coverage / Shadowing?

• Insufficient coverage — the applied coating thickness is below the minimum required, or entirely absent, on areas that should be protected.
• Shadowing — a specific form of insufficient coverage where components, leads, or vertical features physically block coating deposition.

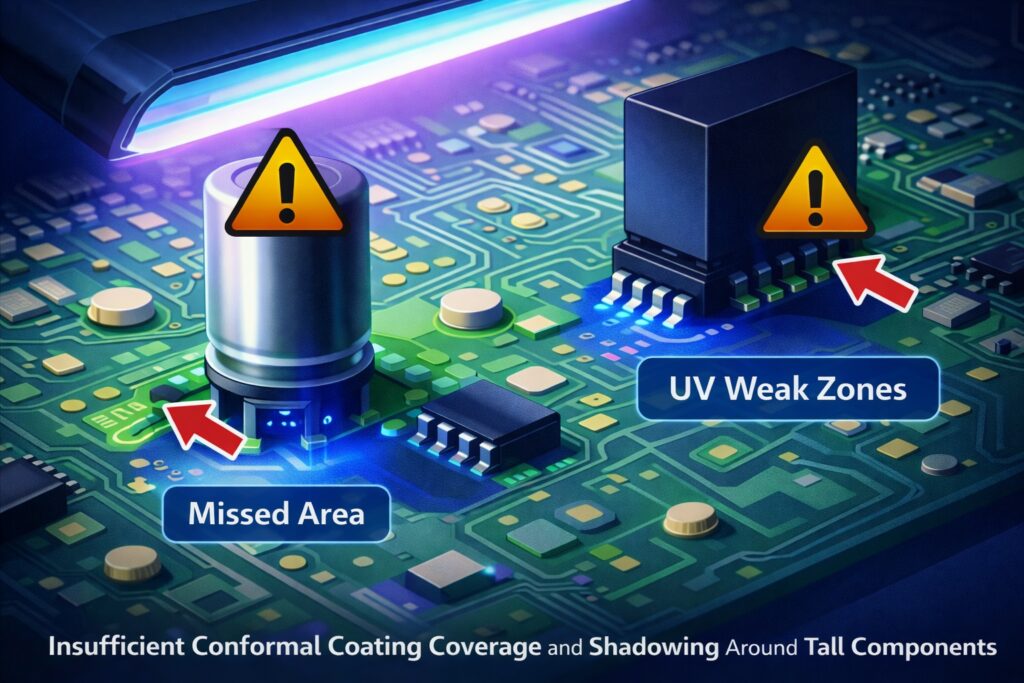

• Typical indicators — UV fluorescence fades or disappears, laminate or solder mask texture remains visible, or coating abruptly stops at component edges.
• Risk — exposed copper, solder joints, or laminate edges become entry points for moisture, ionic contamination, and corrosion mechanisms.

Unlike wicking or de-wetting, insufficient coverage is usually caused by lack of access rather than coating movement after application.

↑ Back to Quicklinks

Causes of Insufficient Coverage & Shadowing

• Component geometry — tall parts, fine-pitch leads, connectors, shields and heat sinks block the spray or flow path.
• Low standoff components — chip resistors, QFNs and LGAs prevent coating from reaching underneath edges.
• Application angle and distance — fixed spray angles or excessive gun distance reduce penetration into complex assemblies.
• Robotic path limitations — insufficient path overlap, poor vector selection, or conservative keep-out programming.
• Film build strategy — single-direction passes that never re-address shadowed regions.
• Masking overreach — keep-out masking unintentionally blocks coating from adjacent required areas.

↑ Back to Quicklinks

How to Prevent Insufficient Conformal Coating Coverage

• Multi-angle application — apply coating from more than one direction to break shadow lines.
• Optimised robot paths — add secondary vectors and overlap passes around tall or dense components.
• Controlled film build — use staged light passes to build thickness without runs or pooling.
• Correct gun distance and pressure — maintain penetration while avoiding excessive atomisation.
• Masking discipline — ensure keep-out masking does not encroach into required coating zones.
• Design-for-coating awareness — identify high-risk geometries early and define mitigation strategies.

Coverage verification methods and acceptance criteria are detailed in the Inspection & Quality Hub.

↑ Back to Quicklinks

Troubleshooting & Diagnosis

• UV inspection mapping — identify consistent weak or dark zones relative to component geometry.
• White-light confirmation — check for exposed laminate, solder mask texture, or sharp coating cut-offs.
• Pattern repeatability — confirm the defect repeats in the same locations across multiple boards.
• Path review — overlay robot paths or spray directions with defect locations.
• Masking audit — verify masks are not blocking adjacent required areas.
• A/B trials — adjust angle, distance, or add a secondary pass to confirm shadowing as the mechanism.

↑ Back to Quicklinks
