Conformal Coating Application Processes: A Complete Guide

Spray, dip, selective robotic, brush/touch-up and Parylene compared

Choosing the right conformal coating application process is critical for PCB protection, yield, and cost control. This guide compares spray, dip, selective robotic, brush/touch-up, and Paryleneβ€”including where each fits best, typical risks, and how to choose based on volume, geometry and reliability.

How to Choose the Right Process

In practice, process choice is driven by volume, geometry/keep-outs, and required reliability. Use this quick checklist before you fall into β€œwe’ve always done it this way”.

  • Volume & takt time: prototypes/low volume β†’ spray/brush; medium–high volume β†’ selective robot /dip; stable families β†’ dip/inline.
  • Keep-outs & masking burden: heavy keep-outs favour selective spray; large β€œcoat everything” areas favour dip.
  • Complex 3D geometry: under-components/cavities/sharp edges β†’ Parylene often wins.
  • Rework needs: if rework is frequent, some liquid chemistries/processes are easier to service than others.
  • Risk profile: high-reliability electronics should prioritise repeatability + verification plans (inspection + thickness strategy).

Fast rule of thumb

  • Spray: flexible + low capex, but operator-driven unless tightly controlled.
  • Dip: great coverage and repeatability, but design must support drainage + masking workload can be high.
  • Selective: best for controlled keep-outs and high repeatability, but requires programming/fixturing discipline.
  • Brush: repair/touch-up only (not a β€œproduction process” unless you accept variability).
  • Parylene: true conformality and high performance, but specialist equipment + masking discipline still matters.

Next step: align your choice to a holistic conformal coating process (design β†’ chemistry β†’ application β†’ inspection).

↑ Back to Quicklinks

Spray Coating Application

Spray coating is one of the most flexible conformal coating application processes for prototypes, NPI and low–medium volumes. It can deliver excellent results when viscosity, distance, atomisation and flash-off are controlled.

  • Pros: low equipment cost, flexible, easy to changeover, straightforward rework.
  • Watch-outs: operator variability, overspray, edge build-up, orange peel and bubbles if flash-off/cure is wrong.

Useful links: viscosity control, orange peel and pinholes & bubbles.

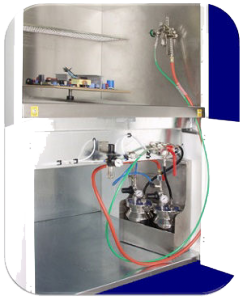

View Spray Booth β€Ί

↑ Back to Quicklinks

Dip Coating Process

Dip coating provides highly repeatable coverage and is a long-established PCB coating process for uniform film buildβ€”especially when boards share similar form factors. Control comes from viscosity, dwell time, withdrawal speed, and drain orientation.

  • Pros: excellent repeatability, strong coverage consistency, scalable to volume.
  • Watch-outs: masking workload can be high; poor drainage causes pooling, wicking and edge build-up.

Useful links: capillary wicking, masking strategy and inline dip & automation.

Explore Dip Systems β€Ί

↑ Back to Quicklinks

Selective Robotic Conformal Coating

Selective coating uses CNC-controlled valves to apply coating precisely where needed. It is often the best choice for high mix production where masking labour is the dominant cost and risk.

  • Pros: reduced masking, low waste, high repeatability, cleaner keep-outs.
  • Watch-outs: capex + programming time, fixturing discipline, and β€œedge-definition” must be validated in inspection.

Tie selective coating to a defined control plan (recipes + viscosity + thickness verification) and use the Inspection & Quality Hub to set acceptance checks.

↑ Back to Quicklinks

Brush Application / Touch-Up

Brush coating is mainly a repair and touch-up methodβ€”useful for rework, local coverage fixes, and low-volume situations where equipment is not justified.

  • Pros: minimal equipment, targeted application, fast local repair.
  • Watch-outs: cosmetic variation, thickness variability, higher risk of contamination and edge defects if uncontrolled.

Brush processes still need inspection rules and operator escalation pathwaysβ€”otherwise they become a hidden defect generator.

↑ Back to Quicklinks

Parylene Deposition

Parylene is applied via vapour deposition, giving true 3D conformality and a very uniform, pinhole-free barrierβ€”particularly valuable for dense assemblies, sharp edges, cavities and harsh environments.

  • Pros: true conformality, excellent dielectric properties, uniform thin films across complex geometry.
  • Watch-outs: specialist equipment; masking is still critical (often different to liquid masking); surface prep/outgassing control is essential.

Discover Parylene Equipment β€Ί

↑ Back to Quicklinks

Choosing the Right Conformal Coating Application Process

Each methodβ€”spray, dip, selective, brush, and Paryleneβ€”has strengths and trade-offs. The best choice usually comes from balancing: volume, keep-outs/masking effort, design geometry, and reliability requirements.

  • Production volume: low volume β†’ spray/brush; medium–high volume β†’ selective/dip.
  • Reliability: harsh environments may justify Parylene or tightly controlled selective processes.
  • Cost drivers: labour + masking + rework usually dominateβ€”not just coating price.
  • Design complexity: dense 3D structures may require Parylene or selective to manage keep-outs.

Explore upstream process control here: Conformal Coating Processes Hub and Defects Hub.

External resources: IPC and UL.
