Setting Up a Conformal Coating Production Line

Practical Guidance for Reliable, Compliant Throughput

Building a robust conformal coating production line starts with clear process requirements, the right equipment, and disciplined process control. This technical bulletin outlines a proven approach—from application and drying to inspection and quality assurance—so you can reduce defects, improve yield, and meet customer and IPC-A-610 expectations.

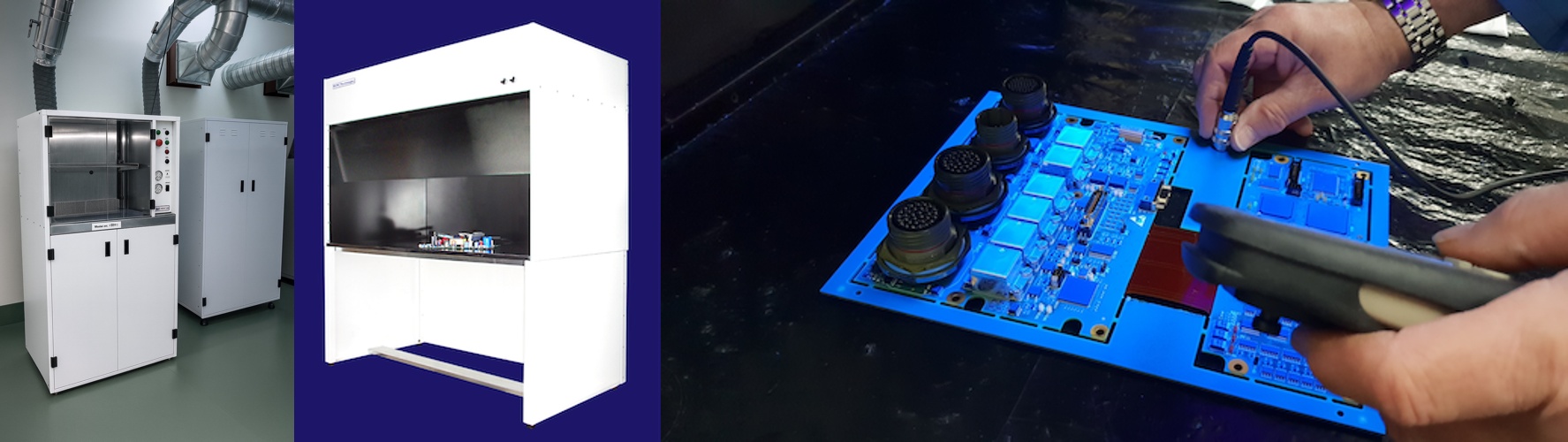

Conformal coating production line – DS101 dip system with drying cabinet, IB101 inspection booth, and Positector thickness measurement – SCH Services UK

1) Define Process Requirements

Start with customer and standards requirements so the line is designed for compliance, not rework:

  • Coating chemistry: acrylic, urethane, silicone, epoxy, or Parylene
  • Target film thickness and inspection method (wet, dry, or optical)
  • Masking strategy and rework approach (if/when required)
  • Acceptance criteria per IPC-A-610 and IPC-CC-830

2) Select Application, Drying & Support Equipment

Choose the application method that fits volume and geometry, then add the right support equipment for a stable line:

  • Application: Dip systems (e.g., DS101) or selective/manual spray (e.g., CB100)
  • Drying/Curing: Drying cabinets and ovens matched to chemistry & throughput
  • Inspection: UV/white-light inspection booths (e.g., IB101)
  • Measurement: Wet film gauges, PosiTector 6000 dry film, optical systems for Parylene
  • Facilities: Fume extraction, ESD control, temperature & humidity management

Explore related equipment:
 Thickness Measurement, Removal & Rework, Inspection.

3) Process Control & Repeatability

Lock in stable parameters and verify outcomes routinely:

  • Viscosity monitoring (flow cups / inline): keep within defined windows
  • Documented machine settings: speeds, passes, pressures, temperatures
  • SPC checks on film build (wet→dry correlation, coupon strategy)
  • Recorded inspection points and acceptance criteria

See also: Conformal Coating Viscosity Control and Thickness Measurement Methods.

4) Inspection & Quality Assurance

Build inspection into the line to catch issues early and maintain traceability:

  • UV/white-light coverage checks: edges, meniscus, keep-outs
  • Defect control: pinholes, bubbles, dewetting, orange peel, delamination
  • Gauge plans: PosiTector 6000 (dry film) or optical for Parylene
  • Documentation & rework loop where needed

Reference: NASA NEPP resources on coating reliability.

Benefits of a Well-Designed Line

  • Consistent quality and fewer defects
  • Higher throughput with predictable cycle times
  • Standards compliance and easier audits
  • Flexibility to support new products or chemistries

Download the Technical Bulletin

Prefer the PDF format? Download the bulletin for offline reference:

📄 Download: Setting Up a Conformal Coating Production Line (PDF)

Need Help With Your Line?

SCH provides complete support—from process design and equipment selection to operator training and on-site optimisation. We also offer outsourced coating services when you need extra capacity.

Contact SCH to discuss your coating line →
