Automation & Industry 4.0 in Conformal Coating

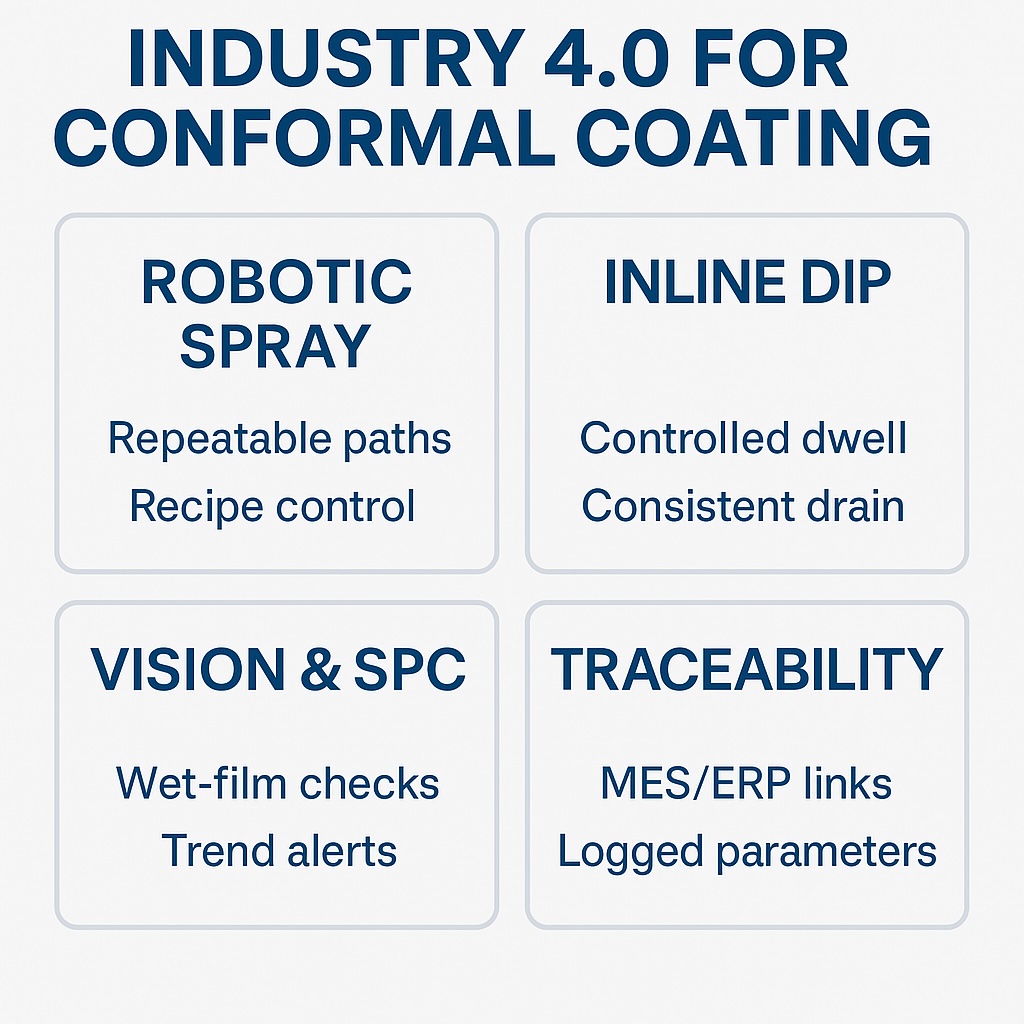

Automation in conformal coating goes beyond simple robotic spray valves. Modern Industry 4.0 tools and equipment — including inline dip systems, smart pumps, vision inspection and SPC data — allow manufacturers to build coating lines with predictable quality, reduced labour and full traceability.

This guide explains the core technologies and how they can be implemented in real production environments.

• Consistency – repeatable spray passes and controlled dip dwell / drain times reduce variation.
• Reduced rework – digital checks catch coverage or pooling issues before cure.
• Traceability – each assembly can be logged against process parameters and recipes.
• Faster throughput – automated handling, inline dip and inspection reduce bottlenecks.
• Predictive quality – SPC and trend data highlight drift before defects occur.

Robotic coating systems provide accurate, repeatable spray coverage. Modern systems use:

• dynamic speed adjustment on complex geometries
• automatic masking clearance detection
• recipe locking to prevent operator error
• vision-aligned start points for every batch

Inline dip coating combines the coverage benefits of immersion with the control of an automated line. Assemblies are transferred through a dipping, draining and pre-cure sequence with tightly controlled parameters:

• insertion speed and dip depth
• dwell time in the coating bath
• programmable withdrawal profile to minimise meniscus and pooling
• fixed drain time and orientation before cure

Compared with manual dip coating, an inline system supports better repeatability, lower labour content and integration with upstream/downstream processes such as pre-bake, masking and curing.

Automated metering prevents variability from viscosity, temperature or operator technique for both spray and dip tanks. Key parameters can be recorded automatically:

• flow rate and recirculation in dip systems
• spray pressure stability and valve open time
• coating tank temperature and level
• dispense volume per cycle or per panel
• Automated dosing systems
• Warnings on material pot content

Vision inspection provides early detection of defects on both sprayed and dipped assemblies:

• missed areas and shadowed regions
• pooling & edge build-up after dip or spray
• incorrect masking positions or missing boots
• foreign object contamination on critical zones

These checks occur before curing, where rework or re-dip is easier and cheaper.

Industry 4.0 coating lines increasingly use inline or near-line thickness checks with automatic SPC logging. This can be applied to dip-coated and sprayed boards.

• eddy-current measurements for metallic substrates
• interferometry for Parylene and clear coatings
• UV intensity mapping as a coverage proxy
• data trending, control limits and automatic alarms

Automation allows both inline dip coating lines and robotic spray cells to become fully traceable.
Typical data recorded:

• operator ID or automated cell ID
• batch number, panel ID or serial number
• recipe name & revision (spray or dip)
• coating temperature, humidity & key process parameters
• SPC trends, alarms and any deviations raised

This infrastructure supports audits for aerospace, defence, automotive and medical customers.

Most manufacturers gain benefits by upgrading in stages, choosing between spray and inline dip:

• Stage 1: Robotic coating cell or simple inline dip station to stabilise application.
• Stage 2: Digital recipe control and locked parameters for all products.
• Stage 3: Vision inspection before cure for coverage and pooling.
• Stage 4: Data logging & SPC dashboards tied to thickness and defect data.
• Stage 5: Full MES/ERP integration & traceability across the coating line.

• High-mix, medium-volume PCB assembly where repeatability is difficult manually.
• Aerospace & defence programs needing documented traceability.
• Automotive & EV electronics with high reliability and volume demands.
• Wearables, sensors & IoT assemblies where coverage is critical on small formats.
• Boards where dip coating gives better edge coverage, but must be controlled tightly.

SCH supports manufacturers with turnkey coating services, Parylene coating, process consultancy, micro-abrasion rework solutions and training programs covering automation, inline dip processes, quality control and Industry 4.0 techniques.

Our team helps companies implement stable, repeatable coating workflows — from inline dip and robotic spray control to full digital traceability.
