Dry, Remove, Inspect and Measure
Specialist tools that keep your conformal coating and Parylene processes reliable and repeatable.
At SCH Services Ltd we provide conformal coating support equipment that underpins high-quality conformal coating and Parylene work. From inspection and drying/curing to coating removal and film thickness measurement, our solutions improve quality control, speed up workflows, and help you document results for audits across electronics, aerospace, automotive, and medical manufacturing.
Fast Links
- π Inspection Equipment
- π₯ Drying Systems
- π Removal Equipment
- π Thickness Measurement
Inspection Equipment for Conformal Coating

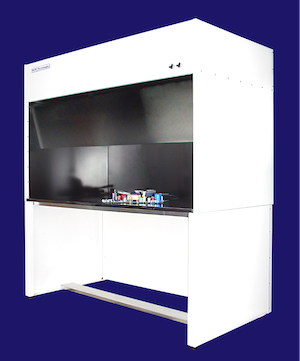

IB100 & IB101 Inspection Booths
Our IB100 and IB101 inspection booths form part of SCHβs conformal coating support equipment, providing uniform UV illumination that removes glare and shadows so thin areas, skips, and bubbles are easy to detect.
These booths are trusted daily in SCHβs own coating services. They create a controlled inspection environment that improves yield, reduces rework, and ensures compliance with
IPC-A-610 workmanship standards.
- 365 nm UV highlights fluorescent trace for clear coverage checks
- Adjustable white light and ergonomic layouts
- Optional rear extraction for VOCs (HSE LEV guidance)
- Durable, easy-clean construction β production-proven
Dry & Cure Support Equipment

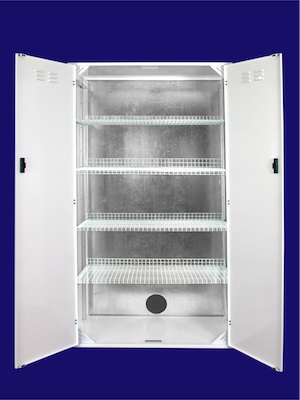

DC100 Drying Cabinet
The DC100 drying cabinet is part of SCHβs conformal coating support equipment range, providing stable, dust-free curing and drying that prevents surface defects and protects assemblies while coatings dry.
With controlled airflow and optional rear extraction, the DC100 improves operator safety and VOC handling while ensuring coatings cure consistently and repeatably.
- Clean, controlled drying environment
- Rear extraction option for solvents
- Stainless-steel internals and easy-clean design
- Field-proven daily in SCHβs own coating services
Removal Equipment for Conformal Coating
Rework is inevitable for conformal coatings and Parylene β do it without damaging components. SCHβs support equipment includes precision micro-abrasive rework systems for selective removal and wet stripping systems for full-board refurbishment.
Vaniman Problast β Two Chamber Options
Choose the Problast model based on assembly size and operator access requirements:
- Problast 3 ESD β standard chamber for most PCB assemblies and day-to-day selective rework.
View Problast 3 ESD β - Problast Titan ESD β large-format chamber for oversized boards, fixtures, and improved operator access.
View Titan ESD β
Vaniman Problast 3 ESD
The Problast 3 ESD uses controlled micro-abrasive blasting for precise, localised conformal coating and Parylene removal β ideal for dense PCB assemblies.
- Interchangeable nozzles and adjustable pressure
- Clean, controlled, repeatable results
- Electronics-safe ESD chamber design
Vaniman Master Problast Titan ESD
The Titan ESD delivers the same controlled removal principle as the Problast 3 β with a significantly larger working chamber for oversized assemblies and improved operator access.
- Large-format chamber for bigger PCBs and fixtures
- ESD-safe construction for sensitive electronics
- StoneVac II extraction recommended for optimal containment

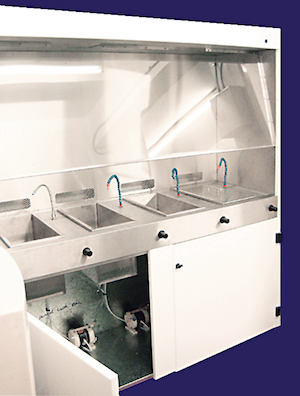

WS100 Wet Stripping System
The WS100 provides controlled, progressive removal for full-board refurbishment of acrylic and urethane coatings (not suitable for Parylene).
- Four-stage stripping workflow
- White + UV lighting for inspection during process
- Optional extraction for solvent fumes
Thickness Measurement Support Equipment
Accurate thickness verification underpins compliance and process control. SCHβs conformal coating support equipment includes optical, eddy-current, and wet-film thickness testing solutions (NPL metrology reference).

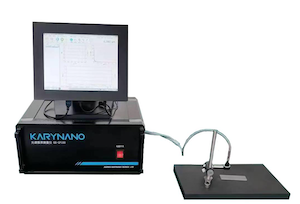

KR-FM20 Optical Monitor
Non-contact optical measurement from 50 nm to 60 Β΅m with ~1% accuracy, suited to inline QA and lab validation.
- Real-time readout and software integration
- Continuous monitoring mode
- Non-destructive β no cutting or cross-sectioning

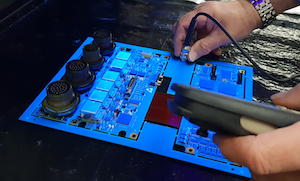

Positector 6000 Eddy Current
Measures non-conductive coatings over conductive substrates quickly and non-destructively.
- Portable handheld gauge
- Ideal when optical methods arenβt practical
- Β±1 Β΅m typical accuracy in 25β50 Β΅m range
Wet Film Gauges
Low-cost, immediate feedback during application. Measure wet film, apply resin solids to predict dry film thickness, and adjust in real time.
- Simple, production-friendly checks
- Prevents over-application and reduces waste
- Works on manual and automated lines
Conformal Coating Training & Consultancy
Alongside supplying conformal coating support equipment, SCH Services provides tailored training programmes to help your team get the best results. Courses are delivered on-site with your equipment and cover process control, masking, inspection, rework, and IPC standards.
We also offer consultancy to optimise workflows, troubleshoot coating issues, and ensure compliance across electronics, aerospace, and automotive production.
