Name: Conformal Coating Masking Dot Rolls
SKU: 6013
Availability: BackOrder

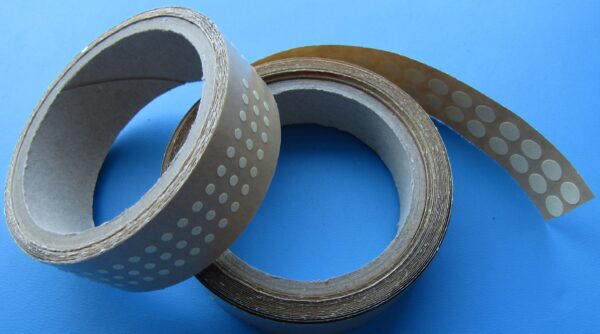

Conformal Coating Masking Dot Rolls

excl. VAT

Precision masking dot rolls for conformal coating and electronics protection, designed for repeatable, higher-volume production across all common coating processes.

Used in SCH conformal coating operations where consistent adhesion, edge sealing, and clean removal are required over extended production runs.

Roll quantities by diameter:
3.00 mm – 10.00 mm: 10,000 dots per roll
12.70 mm – 19.00 mm: 5,000 dots per roll
25.40 mm: 2,500 dots per roll

Typical lead time: 2–3 weeks

Description

We use these masking dot rolls daily in our own conformal coating operations. Our teams — and many of our customers — have relied on them for years because of their reliability, consistency, and clean removal in demanding production environments.

Rolls of masking dots provide precise, selective masking during conformal coating and spray coating. Operators use them to protect connectors, test points, LEDs, and defined keep-out areas where control of coating ingress is critical.

By preventing unwanted coating build-up, the dots improve first-pass yield, streamline processing, and significantly reduce the need for rework.

Why choose masking dot rolls?

Secure hold: adhesive keeps dots firmly in place during coating and curing
Clean removal: peels away without residue or surface damage
Repeatable accuracy: consistent dot sizes support reliable masking
Versatile use: suitable for manual and automated coating processes
Production-ready: performs well in prototypes, low-volume, and high-mix manufacturing

For prototype builds or short lead-time requirements,A4 masking dot sheets may be a more flexible option.

🌍 Buying outside the UK? Shipping terms, lead times, and delivery costs vary by region. We recommend speaking with our team before ordering.

📞 Call: +44 (0)1226 249019 | ✉ sales@schservices.com | Contact us →

Additional information

Select Size	3.00mm, 4.00mm, 4.76mm, 5.00mm, 6.00mm, 6.35mm, 7.00mm, 7.94mm, 8.00mm, 9.00mm, 9.52mm, 10.00mm, 12.70mm, 14.30mm, 15.90mm, 19.00mm, 25.40mm

Additional Information

Our dedicated range of masking dot rolls is designed specifically for conformal coating production environments and is compatible with all common coating processes.

Many general-purpose masking dots and tapes available on the market are not optimised for conformal coating applications and can introduce avoidable process issues, including:

Thin coating around the perimeter of the dot, where the coating pulls back (de-wetting)
Residue left behind after removal, requiring additional cleaning steps
Coating bleed underneath the dot during application
Tearing or splitting during removal, slowing production
Adverse chemical interaction with the conformal coating material

For an efficient and repeatable production process, it is essential to minimise these effects. Our masking dots are engineered to provide reliable adhesion, clean removal, and effective edge sealing, ensuring protected areas remain completely free from coating and supporting a stable, repeatable conformal coating process, while helping to reduce rework and process variation.

Technical Description

Typical Properties

Adhesive Type	Rubber-based
Total Thickness	0.180 mm
Peel Strength	> 0.28 kN/m
Initial Tack	> 10 (ball test)
Holding Power	> 15 hours
Temperature Resistance	160 °C for 30 minutes

These typical properties provide secure adhesion during coating and curing while allowing clean, residue-free removal.
Values shown are typical and may vary slightly by batch.
