How Parylene Dimer Purity Affects Coating Quality

Linking ppm-level impurities to film performance, yield and reliability

← Back to the Parylene Dimers Hub

Parylene dimer purity is a primary driver of coating quality. Trace non-volatile residues (NVR), moisture, particulates and side products can contribute to pinholes, haze, rate instability and electrical-performance driftβ€”ultimately reducing dielectric margin and long-term reliability. This guide explains how purity translates into visible and latent defects, what to include on your acceptance criteria & Certificate of Analysis (COA), and how handling and storage protect quality.

Further reading: Wikipedia – Parylene

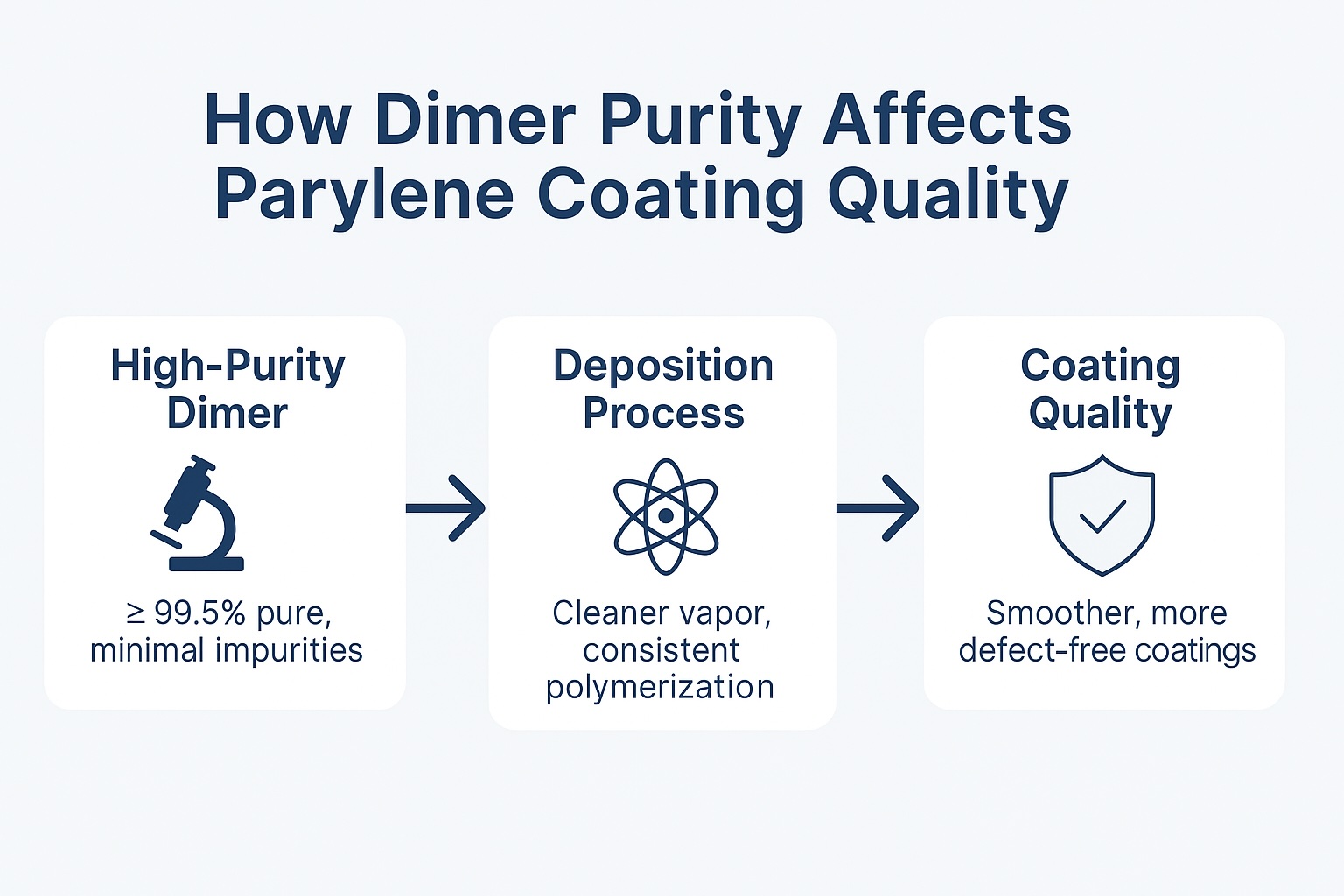

How Dimer Purity Affects Parylene Coating Quality – Infographic showing how high-purity dimers produce cleaner deposition, smoother films and stronger adhesion.

Overview

Even with identical deposition hardware, Parylene dimer purity can shift base pressure, rate stability and film morphology. Four impurity classes matter most:

  • NVR/ash – non-sublimable residues that foul crucibles and increase haze/roughness risk.
  • Particulates – seed nodules and pinholes; often introduced during transfer/loading.
  • Moisture – contributes to outgassing and vacuum instability; can correlate with haze/pinholes if not controlled.
  • Side products/solvent traces – can shift electrical properties and raise leakage risk.

Note: Purity numbers and β€œppm” claims are only meaningful when the test method, detection limit and reporting basis are defined (e.g., GC vs HPLC, Karl Fischer method, TGA endpoint). Always lock these on the COA.

⬆ Back to Top

Purity Metrics & COA Essentials

Your supplier’s Certificate of Analysis should include the followingβ€”align these with your internal spec and ensure the method is stated so values are comparable lot-to-lot:

Metric What It Shows Guidance (set by risk class)
Purity (GC/HPLC) Main dimer content vs side products Define an internal minimum by product risk; specify method & detection limits on the COA
NVR/Ash (TGA) Non-sublimable residue at process-relevant endpoint Set a residue limit and endpoint temperature/time; tighten where appearance/dielectric margin is critical
Moisture (Karl Fischer) Water content driving outgassing/vacuum instability risk Specify β€œrelease / warn / quarantine” bands in ppm with the KF method stated
Particle Cleanliness Contamination control during pack/transfer Supplier statement + incoming spot checks (e.g., membrane patch) for critical builds
Identity (DSC/Melt) Confirms grade; flags contamination or mix-ups Establish reference range per grade; investigate drift immediately
Traceability Batch ID, pack date, packaging type Mandatory on all lots

Tip: Keep COA fields consistent across grades (N/C/D and fluorinated grades such as AF-4/HT equivalents), because volatility and residue behaviour can differ by chemistry and supplier process.

Set your own release, warn and reject bands and align them with product risk classification (e.g., aerospace, medical, safety-critical).

⬆ Back to Top

Impurity β†’ Process β†’ Defect

The following summary links impurity classes to process symptoms and the defects you may see at inspection when Parylene dimer purity is poor:

Impurity Process Effect Typical Defects Risk
NVR/Ash Crucible fouling, rate drift Haze, roughness, orange peel High
Particulates Contaminated monomer flow Nodules, inclusions, pinholes High
Moisture Outgassing, vacuum instability Haze, pinholes, adhesion variability Medium-High
Side products/solvent Electrical property drift Higher leakage, lower breakdown Medium

Tip: Place witness coupons in shadowed regions to reveal particulate and morphology tendencies that normal boards may hide.

⬆ Back to Top

Acceptance Criteria & Tests

Define clear release thresholds for Parylene dimer purity and verify at incoming inspection. Practical approach:

  • Write an internal spec: lock the COA fields, test methods, detection limits and reporting basis.
  • Set release/warn/quarantine bands: adjust by product risk and customer requirements.
  • Validate functionally: tie COA results to witness-film inspection and electrical tests where appropriate.
Verification Test Purpose Notes
TGA (Residue) Confirms non-volatile content Useful indicator for haze/roughness risk (ensure endpoint is defined)
GC-MS/HPLC Profiles side products Tracks lot-to-lot variation (method must be consistent)
KF Moisture Detects water uptake Correlates with outgassing/vacuum stability issues
DSC/Melt Identity confirmation Flags contamination or mix-ups
Witness Film + Electrical Checks Functional validation Use application-appropriate methods (e.g., leakage / breakdown / SIR where relevant)

⬆ Back to Top

Handling & Storage

Consistent handling protects purity between COA and deposition:

  • Dry & clean transfer: transfer in a clean area; use dedicated tools per grade to prevent cross-contamination.
  • Moisture control: keep sealed with desiccant where appropriate; minimise ambient exposure during loads.
  • Crucible housekeeping: remove legacy residue; avoid β€œbaking in” contamination between lots.
  • Process trending: track base pressure and rate; investigate drift immediately.
  • FIFO & re-test: rotate stock; consider re-checking moisture on aged/opened lots.

⬆ Back to Top
