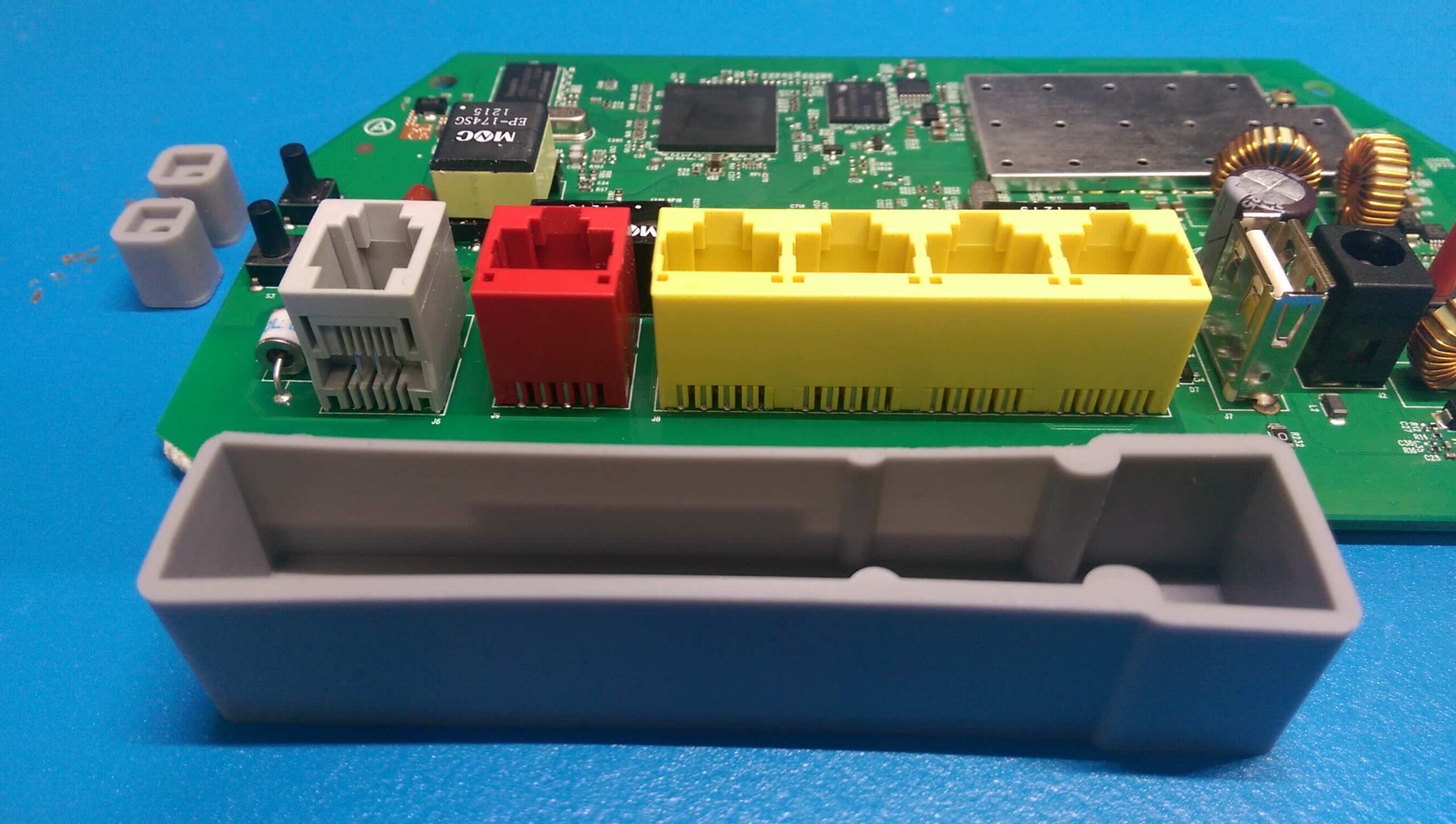

Reusable Masking Boots – Speed, Cost & Repeatability
Reusable masking boots give fast, repeatable seals around connectors and keep-outs, so you can lift first-pass yield and cut masking labour. You and also combined them with liquid latex and create perfect barrier solutions. Compared with tapes and dots, they reduce setup time, improve edge definition, and lower cost per board as volumes rise.
Quick Links
When to Use Reusable Masking Boots
- Medium to high volumes where masking time dominates cycle time.
- Repetitive builds with common connector families (headers, USB, RF, edge connectors).
- Tight keep-outs that need reliable barrier sealing and crisp edges.
- Programs that demand consistent cosmetics and reduced operator variation.
Benefits & ROI of Reusable Boots
- Speed: Faster load/unload than taping; setup becomes predictable.
- Repeatability: Uniform compression gives clean break lines and fewer touch-ups.
- Cost per board: Unit cost falls as reuse count rises (often 50–200+ cycles).
- Quality: Less residue and fibre transfer versus tapes; better edge definition.
- Safety & housekeeping: Fewer offcuts; simpler waste streams.
Tip: Track reuse count and defects per 100 boards to show payback clearly.
Fit & Selection: Getting the Seal Right
- Profile match: Choose connector-specific silicone masking boots or measure L×W×H and latch/lead features.
- Compression: Aim for light, full-perimeter compression without stressing the component.
- Material: Heat-stable silicone (typ. 200–250 °C short exposure) with solvent resistance appropriate to your chemistry.
- Handling: Add pull tabs or ribs for gloved removal; colour-code by board variant.
Process Compatibility
- Spray: Boots act as a barrier; use latex if conformal coating risks penetrating underneath.
- Dip: Confirm full seal; qualify for capillary forces and edge-break lines.
- Selective robot: Boots reduce no-coat programming and overspray cleanup.
- Parylene: Use dedicated, fully sealed designs; vapour reaches everywhere.
Care & Cleaning for Longer Reuse
- Wipe after each cycle; deep-clean on a defined interval based on build hours.
- Use approved solvents only; avoid swelling or softening the silicone.
- Inspect lips and corners; retire boots showing nicks or permanent deformation.
- Log reuse counts by boot ID to predict replacement and protect yield.
Common Pitfalls to Avoid
- Undersize fit: Can lift components or stress solder joints.
- Over-compression: Leaves witness marks or drives coating under the boot.
- Worn edges: Causes weeping and ragged break lines.
- Mixed chemistries: Some solvents attack silicone; verify compatibility first.
Reusable Boots vs Tapes & Dots
- Boots: Best for repeat builds, connectors, and speed; higher upfront but reusable.
- Tapes & dots: Flexible for odd shapes and one-off work; more labour and waste.
- Hybrid: Seal tapes with latex where a full boot is not available.
FAQs on Reusable Masking Boots
How many cycles can I expect?
Typically 50–200+ cycles, depending on chemistry, temperature, and handling.
Will boots work for dip coating?
Yes, but qualify seals and capillary effects on coupons before release.
Do I still need tapes?
Sometimes. Use tapes or shields for features that boots cannot reach or for one-off work.
Are silicone boots solvent safe?
Often yes, however test against your specific solvent blend to avoid swelling.
