Liquid Latex & Hybrid Barrier Systems – Sealing Tapes & Keep-Out Edges

Liquid latex masking plays a critical role in conformal coating when full barrier protection is required around connectors, edges, and keep-out zones. Used alone or alongside masking tapes, hybrid barrier systems help prevent coating leakage, under-component wicking, and edge creep — key failure modes that compromise coating reliability.

By sealing tapes or forming standalone protective domes, latex provides a flexible, peelable barrier that suits spray, dip, and vapor-phase (Parylene) applications. When employing liquid latex as a masking solution, the result is cleaner edges, lower rework, and improved yield consistency.

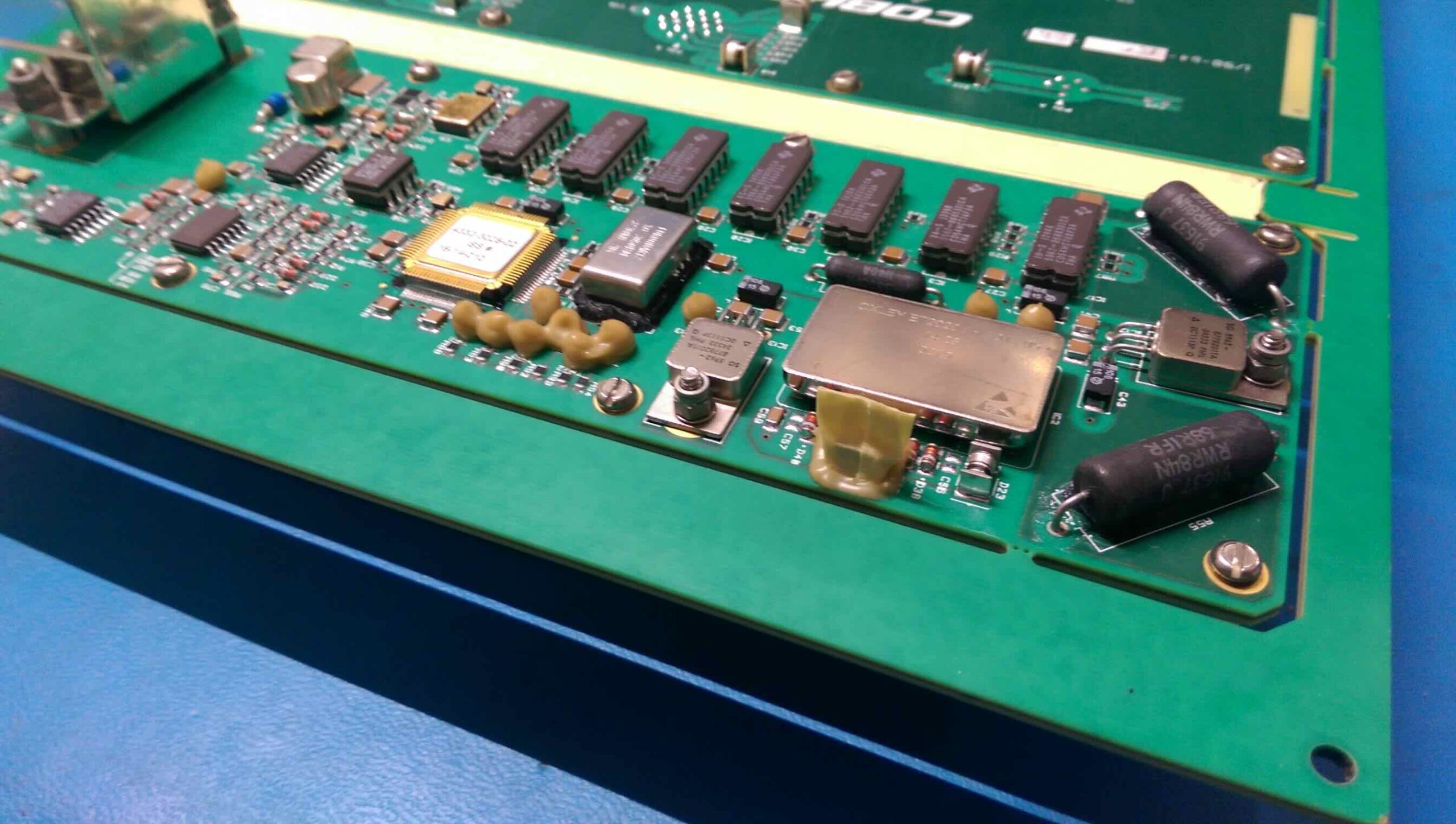

Close-up of PCB with liquid latex masking and hybrid barrier sealing applied to protect connectors and edges during conformal coating.

What Is Liquid Latex Masking?

Liquid latex masking is a peelable polymer film applied to block conformal coating from sensitive or functional areas. Once cured, it forms a continuous barrier seal that resists solvents and coating penetration. After coating and curing, it is removed cleanly without residue.

  • Used for sealing tape edges, component bases, and sharp keep-out boundaries to ensure effective liquid latex masking.
  • Compatible with spray, dip, and selective coating systems.
  • Available in natural and synthetic variants — select based on coating chemistry and cure profile.

Proper latex selection ensures film strength, flexibility, and easy removal without tearing or leaving debris behind.

Hybrid Barrier Systems – Combining Tapes & Latex

In many production lines, engineers use hybrid barrier systems to combine the precision of masking tapes with the sealing performance of latex. This approach strengthens edge protection and prevents coating ingress between tape and PCB laminate.

  • Apply latex along tape edges to eliminate micro-channels and bleed-through for effective liquid latex masking.
  • Use peelable domes or fillets around irregular components and stand-offs.
  • Pair with masking dots or reusable boots for complete coverage.

Hybrid barrier systems are especially valuable when transferring from spray to dip or Parylene coating, where edge sealing becomes mission-critical to achieve liquid latex masking effectiveness.

Process Control & Best Practice

Successful use of liquid latex masking depends on consistent application, curing, and removal techniques. Variation in film thickness, cure time, or compatibility can lead to adhesion issues and contamination risks.

  • Apply latex evenly at 0.3–0.6 mm film thickness for peel strength and coverage, essential for effective masking.
  • Allow full cure before coating to avoid gas entrapment or blisters.
  • Inspect under UV to confirm complete edge sealing and no coating bleed.
  • Record batch data to verify traceability and maintain repeatability.

For controlled environments, integrate latex dispensing and drying stations into coating systems for speed and consistency when working with liquid latex masking.

Selecting the Right Latex

Choose latex materials based on coating chemistry and process temperature. Natural latex offers high elasticity and peel strength but can degrade under heat or UV. Synthetic latex provides better solvent resistance and storage stability. Always verify compatibility of your liquid latex masking through test coupons before full release.

Latex & Masking Solutions from SCH

SCH supplies high-performance liquid latex masking materials and hybrid barrier systems for all coating processes. We also provide training and equipment solutions to help customers optimise masking and improve yield. Our methods and recommendations are fully aligned with IPC standards and recognised industry best practices.

Our range includes masking tapes, dots, custom shapes, and reusable boots — all designed to work with latex sealing techniques for consistent edge definition and reliable protection.
