How to Mask a PCB with Boots

Reusable shielding boots and caps protect connectors and keep-out areas during conformal coating. If you want to know how to mask a PCB with boots effectively, you’ve come to the right place. When selected and fitted correctly, they speed up masking, improve consistency and reduce bleed or rework compared with tape-only approaches. This guide shows you how to choose, fit, seal and remove boots to achieve crisp edges and reliable results.

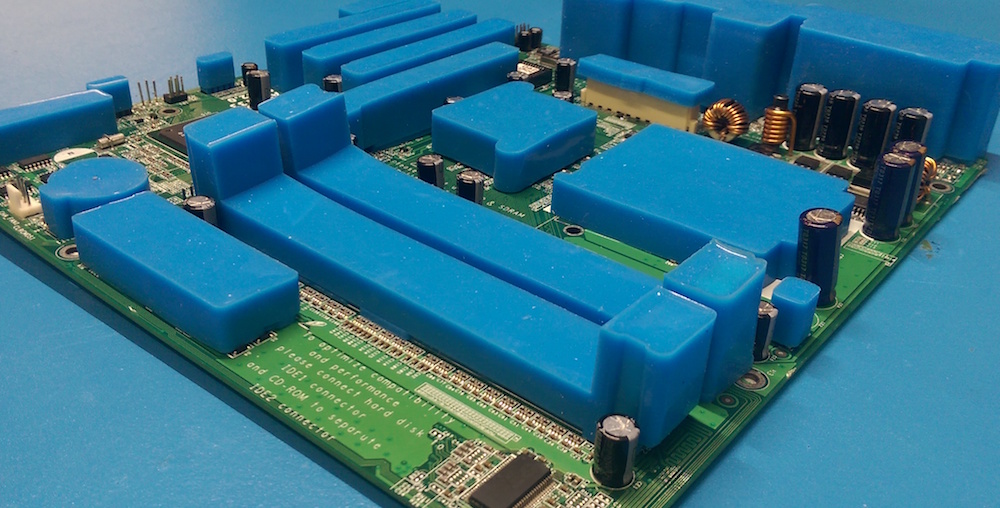

PCB masked with reusable masking boots on connectors ready for conformal coating

1) Tools & Materials You’ll Need

  • Reusable boots/caps/shields sized for each connector/header.
  • Optional edge sealing – high-quality tape or liquid mask for vents/gaps.
  • Tweezers/applicators for precise placement and removal.
  • Calipers/print to confirm body dimensions and tolerances.
  • PPE – gloves, eye protection; good lighting/magnification.
  • Inspection tools – white/UV light for edge definition after coating.

2) Step 1 – Prepare the PCB & Identify Keep-Outs

Clean and dry the assembly. Confirm all keep-outs (connectors, sockets, switches, test points, gold fingers).
Remove particulates and oils that could compromise edge seal. If using tape or liquid mask alongside boots, ensure surface energy supports adhesion.

3) Step 2 – Select the Correct Boot/Shield

  • Fit: Choose boots that seat fully on the connector body without stretching excessively.
  • Geometry: Allow clearance for latches, keys and standoffs; use custom shields where needed.
  • Material: Temperature and chemical compatibility with your coating and cure cycle.
  • Repeatability: Mark part numbers/locations to standardise use across builds.

Learn more:
Masking strategies.

4) Step 3 – Fit, Seal & Vent

Fit: Seat the boot squarely; check full edge contact all around. Correct any rolled lips or trapped leads.

Seal: Where tiny gaps exist (vents, cable exits), apply minimal tape or liquid mask to close capillary paths.

Vent: Provide a route for air to escape during coating so pressure changes don’t draw liquid under the boot.

5) Step 4 – Verify Fit Before Coating

Perform a quick visual and tactile check: edges flat, corners tight, no rocking or gaps. On critical builds, run a dry rehearsal (no coating) to confirm boots don’t interfere with fixturing or handling.

6) Step 5 – Coat, De-mask & Inspect

Coat per your process (spray or dip). De-mask at the specified stage (often after partial cure for crisp edges without stringing). Remove boots gently and avoid dragging across coated surfaces. Inspect edges and keep-outs under white/UV light.

7) Quality Checks & Acceptance

  • Edge definition: Clean, continuous boundary with no feathering into keep-outs.
  • No ingress: Connectors and contacts are dry and free of residue.
  • Surrounding film: No bridges or pooling around connector walls.
  • Standards: Verify to IPC-A-610 and customer specification for coating keep-outs.

8) Common Issues and How to Prevent Them

Issue Cause Prevention
Mask Bleed Poor edge seal; rolled boot lips; incompatible surface energy Reseat boot; seal vents; clean surface; consider liquid mask on edges
Capillary / Wicking Under Boots Pressure or capillary draw through gaps/vents Seal vents; vent high points; verify fit before coating
Bridging Around Connectors Excess film build near vertical faces Reduce film locally; adjust spray angle/withdrawal; split coats
Dewetting / Fish Eyes Contamination on surfaces or boot edges Clean, avoid silicones; verify compatibility
Residue After De-mask Trapped liquid mask or adhesive transfer Use compatible materials; remove at correct cure stage; clean immediately

9) Training & Industry Standards

For repeatable outcomes across shifts, train operators on boot selection, fit, sealing and removal timing. SCH delivers hands-on training covering masking, coating and inspection to IPC criteria.

For official acceptance guidance, refer to the IPC standards:

To discuss a masking training module for your team, contact us here.
