Positector Conformal Coating Thickness System

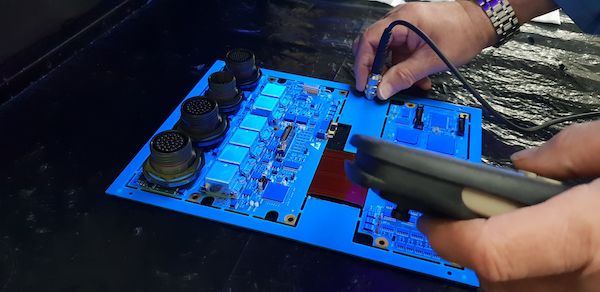

The Positector 6000 Conformal Coating Thickness Gauge is a fast, accurate, and non-destructive way to measure conformal coating thickness on PCBs and electronic assemblies.
Using magnetic induction and eddy current technology, the system works on both ferrous and non-ferrous metals, giving precise results for coatings in the 25–50 µm range. It’s rugged, easy to use, and trusted worldwide for conformal coating quality control.
Why Choose the Positector 6000?
- Simple – ready to measure out of the box, no complex calibration needed
- Accurate – certified calibration, temperature-compensated, ±1 µm resolution
- Versatile – wide range of interchangeable probes for PCBs and coupons
- User-Friendly – one-handed navigation, flip display, rechargeable or alkaline batteries
- Connected – USB and Wi-Fi options for data transfer, reporting, and cloud storage
Probes for Conformal Coating
Two popular probe options for PCB inspection:
-
NS Probe – standard probe, ideal for coupon measurements
-
N0S Probe – compact microprobe for tight spaces on PCBs
Data & Reporting
The Positector 6000 stores every reading with date and time stamps. Results can be:
-
Exported to PC via USB
-
Stored securely in the cloud with PosiSoft.net
-
Analysed and reported with free PosiSoft desktop software
Downloads
Positector coating thickness measurement system
If you’re planning to purchase a piece of equipment from SCH please check for the exact details of the system and dimensions if critical. The dimensions shown in all brochures are subject to change between publication dates.
