Product features


  • High intensity UV light output with long throw
  • Includes re-chargeable battery, spare re-chargeable battery, battery charger (mains and car) and pouch
  • Peak output UV 365 nm
  • Compact, lightweight and durable
  • Re-chargeable lithium-iron battery
  • Instant UV light output
  • Waterproof
  • Wrist strap

Power supplyhigh-output-ledgraph

1 x Re-chargeable lithium-iron battery (2 included)

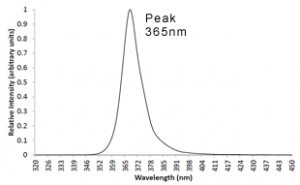

UV light spectral output

A high output 365 nm LED chip is used to produce the UV light spectral output shown.

Technical Specification

UV source High powered 365 nm LED chip running at 5.18 watts
UV source lifetime (L70) 60,000 hours (estimated)
Warm up Instant
Wavelength range 365 nm – 370 nm
Reflector material Anodised aluminium
Construction material (body) Aluminium
Hot re-strike Yes
Weight (including batteries) 185 g
Dimensions 150 mm x 38.5 mm Ø
Rating IP 64


Battery 3.7 V DC ICR18650 Li-iron cells
Battery life 400 charging cycles (approximately)
Battery running time Approximately 1 hour 30 minutes
Recharge time 4 hours (approximately)

Battery Charger

Power supply 110 – 240 V AC 50/60 Hz or 12 V DC via supplied car adaptor
Weight 100 g without plug lead and car adaptor
Dimensions 140 mm x 65 mm x 30 mm
Rating Indoor use only
Temperature range 5oC – 40oC

Spare parts and accessories

hp-led-batteries Additional Re-chargeable Battery
Part Number: PB0534
hp-led-chargers Additional Battery Charger
Part Number: 3W-LED-CHARGER
