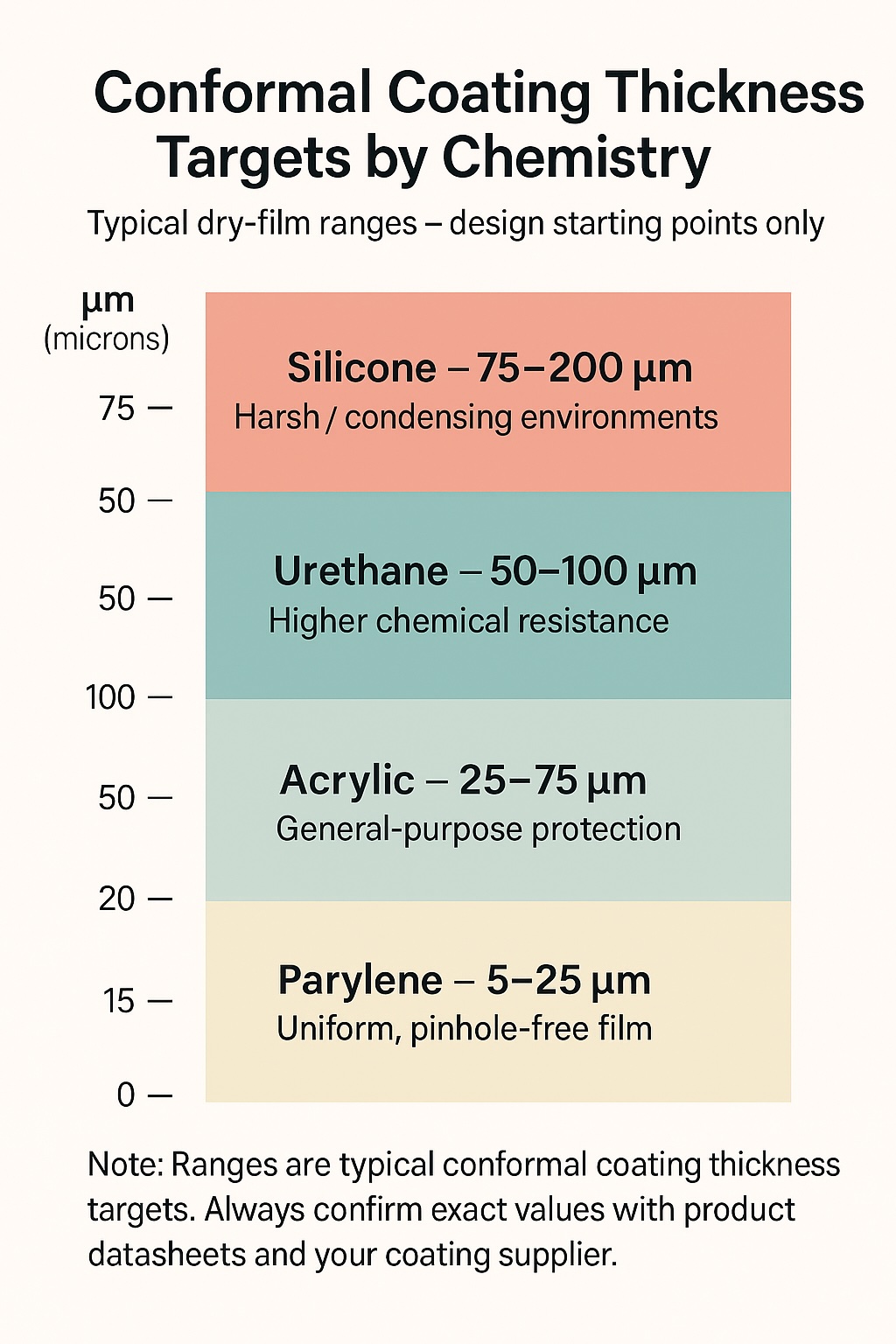

Simple band diagram illustrating typical conformal coating thickness targets for different chemistries. Parylene 5–25 µm, acrylic 25–75 µm, urethane 50–100 µm, silicone 75–200 µm. Intended as a quick design reference – always confirm exact ranges with product datasheets and your coating supplier.
