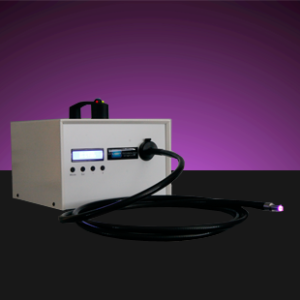

250W UV curing light guide system Product features Manual or timer controlled shutter system Foot or hand switch operation Interface for 24 V remote signal connections Elapsed hour counter for service scheduling UV bulb error indication Fan cooled Auto reset thermal cut out Power supply Emission spectrum for Iron (Fe) doped metal halide UV bulb 230 V 50 Hz (other options – price on request) UV light spectral output The selection of UV bulb and filter glass will depend on the particular application. The usual combinations are provided in the table below. Filter Glass Wavelengths Peak output Black 315 nm – 405 nm 365 nm No filter 160 nm upwards – Fitted with an Iron (Fe) doped metal halide 250 W high intensity discharge UV bulb Technical Specification UV bulb 250 W high intensity discharge Iron (Fe) doped metal halide (ozone free) UV bulb life Approximately 500 hours depending on age, environment, switching and cooling UV light irradiance Up to 1,500 mW/cm2 Reflector Glass Flexible liquid light guides Active core diameters: 5 mm and 8 mm Lengths: 1000 mm and 1500 mm Other lengths available on request Power supply 230 V/50 Hz or 115 V/50 Hz (60 Hz options available) Power 260 W Noise < 70 dB Rating IP 40 Integral fuse protection 2 x 4 A miniature time lag fuses Weight of UV unit Approximately 10 Kg Due to our policy of continual development we reserve the right to amend technical data. Health and Safety All our products are classified in accordance with BS EN 62471:2008 and supplied with maximum permissible exposure times for the unprotected skin and eye at specified distances from the UV lamp, enabling strict compliance with The Control of Artificial Optical Radiation at Work Regulations 2010. Availability of this essential information should form the basis of any procurement policy. UV links UV cure conveyors UV cure lamps and torches UV cure meters Links for further information Liquid conformal coating application Nano coating application Parylene coating application Inspection systems Process control tools UV curing systems Contact us If you would like to know more about coating services or other products and services offered and supported by SCH Technologies, please do not hesitate to contact us. Call us on +44 1226 249019, email us at sales@schservices.com or click Contact Us to send us your requests.
