Delamination after cleaning is often a surface chemistry problem, not simply a cleaning failure. A PCB can appear clean, pass a basic visual check, and still show widespread coating lift if the surface energy is wrong, residues remain that are incompatible with the coating, or the assembly materials do not present a stable surface for adhesion.

This matters because many teams respond by repeating the same cleaning step, using more solvent, or extending wash time, when the real issue is often compatibility, wetting behaviour or surface condition rather than visible dirt.

Quick take. If conformal coating delaminates despite apparently good cleaning, the correct response is usually to review surface energy, residue type, assembly materials, process history and coating compatibility — not just to clean harder.

Most conformal coating delamination issues are caused by surface chemistry, residues, material compatibility and process changes — not simply poor cleaning.

Why this matters

When coating peels, lifts, or separates from a PCB after cleaning, the first assumption is often that the board was not cleaned properly. That is understandable because contamination is a common source of coating defects. However, this explanation is often too simple.

A board can be visibly clean and still be a poor surface for coating adhesion. Extremely thin residues, low surface energy materials, process changes, handling contamination, incompatible repair materials, or a mismatch between cleaning method and coating chemistry can all leave the surface looking acceptable while remaining technically unstable.

That is why “clean” and “ready for coating” are not always the same thing.

The pattern we see again and again

This type of failure often appears on one specific product or PCB design while other assemblies run through the same coating line without obvious issue. The film may lift across a broad area, recede from the surface, peel at edges, or fail during handling, de-masking or later environmental exposure.

That pattern matters because it usually points to a surface chemistry or compatibility issue linked to the board, the residues, the solder resist, the local materials, or the process history rather than a random contamination event.

• The board may look clean but still carry residues that interfere with wetting or adhesion.
• The cleaning method may remove loose contamination without changing the underlying surface energy.
• Different solder masks, finishes, labels, mould compounds and local repair materials may respond differently to the same cleaning route.
• The coating may be acceptable in general but still be a poor match for the surface condition on that assembly.

In those situations, repeated cleaning often delays the answer rather than solving the problem.

What is usually happening underneath the failure

There are several common mechanisms behind delamination despite cleaning.

Low surface energy

Some surfaces are difficult to wet and difficult for coatings to anchor to. In practical terms, the coating may bead, recede or sit on the surface instead of spreading and bonding properly.

Residues that survive routine cleaning

Not all residues behave the same way. Some are soluble in one cleaner but not another. Others smear or redistribute. A board can therefore pass through cleaning and still carry enough residue to disrupt adhesion.

Assembly-specific material effects

One board may include solder mask changes, component mould compounds, labels, sealants, repaired areas or process residues that make it behave very differently to another assembly that appears similar.

Coating compatibility issues

A coating may perform well on many products but still struggle on a specific surface condition. This is where process understanding becomes more important than assuming the chemistry will tolerate everything.

Practical warning sign. If the same product repeatedly shows adhesion failure while other boards in the same process look fine, the issue is often the interaction between that assembly and the coating process rather than a general cleaning problem.

A more useful way to think about adhesion problems

A weak coating process does not always fail because the line is dirty. It often fails because the surface is not technically prepared for that specific coating. The better engineering question is not simply, “Was it cleaned?” but, “Was the surface actually suitable for reliable adhesion?”

That means reviewing the full surface condition, including the residue type, the material set on the board, the handling route, the cleaning chemistry, the drying process and the coating selected.

This shift in thinking is often what stops teams from running in circles.

What to review before changing the whole process

Before changing the coating, reworking the line, or blaming the cleaner, it is worth stepping back and checking a few basics.

• Has the board design, solder mask, flux, cleaning chemistry or handling route changed?
• Is the failure limited to certain areas, materials or components?
• Does the coating show poor wetting before cure, or only fail later?
• Are there local repair materials, labels, sealants or other non-standard surfaces on the board?
• Is the cleaning method genuinely suitable for the contamination or residue type present?

These questions often reveal that the problem is not random and not simply caused by insufficient wash time.

What This Means in Practice

If coating delaminates despite apparently good cleaning, the next step is not automatically to increase cleaning intensity or change coating chemistry. It is to review the surface condition in a structured way and identify whether the issue is residue, low surface energy, material incompatibility or a process change that has altered the board surface.

For related defect mechanisms, see De-wetting in Conformal Coating, Corrosion and Ionic Contamination, and Why Masking Causes Most Conformal Coating Defects.

For broader inspection and process review context, see the Conformal Coating Inspection & Quality Hub and the Conformal Coating Processes Hub.

This is also where many teams benefit from operator training, structured troubleshooting and practical process review rather than repeated trial-and-error cleaning.

Where this insight fits in the wider coating system

Delamination does not usually sit in isolation. It links directly to masking practice, process sequencing, contamination control, inspection and defect interpretation. That is why this topic is best treated as part of a wider coating reliability system rather than as a standalone cleaning question.

In practical terms, teams often improve faster when they connect adhesion failures to the full process instead of viewing them as one-off surface preparation events.

Why Choose SCH Services?

SCH supports customers with practical conformal coating troubleshooting, training and production-facing engineering support. If your coatings appear to fail despite correct cleaning, we can help review the likely causes and identify a more stable route based on the full process rather than guesswork.

Useful next steps:

• Conformal Coating Services
• Conformal Coating Training
• Conformal Coating Consultancy

This is often where a structured review saves more time than repeating the same cleaning and recoating cycle.

Note: This insight provides general technical guidance only. Final design, material selection, surface preparation, process control and validation decisions must be verified by the product manufacturer and confirmed against the applicable standards, qualification requirements and customer specifications.

Low-cost electronics are often deployed in high-risk environments. That creates a contradiction: the product may be inexpensive, but the conditions it operates in demand high-performance protection.

This is where coating decisions become less about unit cost and more about reliability, failure risk and system performance over time.

Quick take. A £4 sensor in soil, moisture, chemicals or outdoor environments can still require advanced coating protection. The cost of failure often outweighs the cost of coating.

Low-cost electronics are often deployed in harsh environments where failure risk is high, making high-performance coatings essential for reliability despite low unit cost.

The contradiction

Many electronic devices are designed to be low-cost, high-volume products. Sensors, control boards and embedded systems are often built to tight cost targets, sometimes just a few pounds per unit.

At the same time, those same devices may be expected to operate in environments that are far from controlled:

• soil and moisture exposure
• condensation and humidity cycling
• chemicals or fertilisers
• temperature variation
• outdoor or industrial environments

This creates a mismatch between product cost and environmental demand.

Why coating becomes critical

Without protection, even a simple electronic assembly can fail quickly in these conditions. Corrosion, leakage paths, contamination and electrical drift can all affect performance.

In these cases, coating is not a premium feature. It is often what allows the product to function reliably at all.

This is where materials such as Parylene can become relevant, even in cost-sensitive applications, because they provide consistent, uniform protection across complex geometries.

Cost vs consequence

The key question is not always “how much does the coating cost?” but “what does failure cost?”

Failure cost can include:

• product replacement
• field service visits
• loss of data or function
• customer dissatisfaction
• brand or reliability impact

In many cases, those costs outweigh the incremental cost of applying a higher-performance coating.

Where it becomes more complex

In some applications, coating does more than protect. It can also influence how the device behaves. This is particularly relevant in sensor systems, where dielectric materials can affect electrical response.

For example, in capacitive sensing applications, coating can change the dielectric environment and shift performance. For more detail, see Why Parylene Coating Changes Capacitive Sensor Performance.

This reinforces the need to treat coating as part of the engineering system, not just a protective layer.

What This Means in Practice

If you are designing or manufacturing low-cost electronics for use in challenging environments, coating should be considered early rather than added as an afterthought.

The goal is not to over-specify protection, but to match the coating approach to the real operating conditions and the cost of failure.

In many cases, this leads to a more balanced decision where coating is treated as part of the product design rather than an optional extra.

Need support selecting the right coating approach?

SCH supports companies in selecting and implementing coating solutions that balance performance, cost and reliability for real-world environments.

This can include material selection, process guidance, coating trials and support for development-stage decisions.

Engineering Consultancy | Parylene Coating Services

Note: This insight provides general technical guidance only. Final design, safety, process control, and compliance decisions must be verified by the product manufacturer and validated against the applicable standards and customer requirements.

Parylene is often treated as a one-pass, final coating process, but in practice assemblies are sometimes modified after coating and require further protection. In these cases, a second Parylene layer may be applied over an already coated and locally changed surface.

Our experience shows that this can work in some cases, with the second layer depositing well and restoring useful coverage. However, it should be treated as an engineered recovery option, not a direct equivalent to a single controlled original coating process.

Quick take. Parylene can sometimes be successfully overcoated after rework or modification, but performance depends on the condition of the original coating, the nature of the change and the final application requirements.

Second-layer Parylene can be applied after rework, but coating interface quality, surface condition and underlying modifications must be carefully assessed.

Why this matters

A common assumption is that once Parylene has been applied, the coating architecture is fixed and cannot be meaningfully altered. In reality, many assemblies go through change after coating, including component replacement, local repair or design updates.

When that happens, the engineering decision is no longer about ideal process flow. It becomes a practical question: can protection be restored without stripping and restarting completely?

That is where second-layer overcoating becomes a useful option to consider.

What we have seen in practice

In recent work, assemblies that had already been coated and then locally modified were overcoated with a second Parylene layer.

The key observation was that the second layer deposited well over the existing surface, providing renewed coverage over the changed areas without obvious visual defects.

This demonstrates that previously coated parts are not automatically excluded from further vapour deposition work when engineering changes are required.

Where the limitation sits

The important point is not whether overcoating is possible. It is how it compares to a first-pass coating on a correctly prepared surface.

A second-layer system introduces additional variables:

• surface condition and ageing of the original coating
• handling or contamination prior to recoating
• local repair materials or modified substrates beneath the new layer
• interface behaviour between coating layers

Because of this, overcoating should not automatically be treated as equivalent to a single, well-controlled original deposition.

Why overcoating can still work

Parylene is deposited through a vapour-phase process, allowing it to conform to existing surfaces rather than relying on liquid wetting behaviour.

Where the underlying surface is suitable, this allows a second layer to follow the existing geometry and build additional barrier coverage over modified regions.

That is why overcoating can be a credible engineering option, even though it is not identical to a first-pass coating scenario.

Where this is most useful

Second-layer overcoating is most relevant where assemblies have already been coated and then changed, and where a full strip and restart may be disproportionate in cost, time or risk.

• post-coating engineering changes
• repair or modification of coated assemblies
• situations where local protection is no longer sufficient
• evaluation of recovery options on high-value assemblies

In these cases, overcoating provides a middle ground between local repair and full coating removal.

What This Means in Practice

If a coated assembly has been modified, the next step is not always to strip everything and start again. A second Parylene overcoat may provide a practical way to restore protection.

However, this should be approached as an engineering decision rather than a default process. The condition of the existing coating, the nature of the change and the required performance all need to be considered.

For engineering teams, this creates an additional option — not a replacement for getting the original coating process right.

Need support with Parylene rework or overcoating?

SCH supports assessment of rework routes including local repair, strip and recoat, and second-layer overcoating where assemblies have already been modified after coating.

This includes practical evaluation of feasibility, risk and performance based on the specific application rather than assumptions.

Parylene Coating Services | Removal & Rework Systems | Engineering Consultancy

Note: This insight provides general technical guidance only. Overcoating outcomes depend on surface condition, contamination, material compatibility and application requirements. Final decisions should be validated against real assemblies and performance criteria.

Parylene is often seen as a permanent final coating, but in development work that is not always the full story. In the right circumstances, it can be removed, the device can be modified or re-evaluated, and the product can then be recoated as part of an engineering loop.

This matters because coating is not always the end of the process. In many real projects, it becomes part of testing, tuning, failure analysis and design optimisation.

Quick take. Parylene can be removed and reapplied during development, rework and validation work. That creates a practical workflow of coat, test, strip, modify and recoat, which is often valuable when electrical behaviour, masking, design details or system performance still need to be refined.

Parylene development often follows a practical workflow of coat, test, strip, modify and recoat, enabling engineers to optimise performance rather than treat coating as a one-shot process.

Why this matters

A common assumption is that once Parylene has been applied, the part is finished and there is no realistic way back. That assumption can be a problem in development programmes, because many products do not behave exactly as expected on the first coated iteration.

Sensor systems, high-reliability electronics, unusual geometries and electrically sensitive devices can all show behaviour that only becomes visible after coating. In those cases, a development team may need to review the design, make a change, re-test the part and then reapply the coating.

That is where rework capability becomes commercially and technically important. It turns coating from a one-direction process into a development tool.

The practical workflow

In development, the real workflow is often not simply coat and ship. It may be:

• apply Parylene to a development build
• test the coated device in real or simulated conditions
• identify a performance shift, masking issue or design change
• remove the coating in a controlled way
• modify, repair or re-evaluate the product
• recoat and validate again

That loop can be extremely useful in product development because it allows coated performance to be studied rather than guessed.

Why removal and reapplication are valuable

The value is not just that Parylene can be stripped. The value is what that enables.

• development teams can tune electrical or mechanical performance after seeing real coated behaviour
• engineering teams can compare coated and recoated results more intelligently
• failure analysis work can separate coating-related effects from design-related effects
• prototype programmes do not always have to start from zero after each change

This is particularly relevant where the coating itself influences the operating system, rather than simply protecting it.

A real example of where this matters

In electrically sensitive devices such as capacitive sensors, coating can change the dielectric environment and shift system behaviour. That means development may need more than a single coat-and-test cycle.

Where the coated part shows an unexpected response, a strip and recoat route can support investigation and optimisation rather than forcing teams to treat the first result as final. For related background, see Why Parylene Coating Changes Capacitive Sensor Performance.

That is one reason why removal capability is not just a service feature. It is part of a wider engineering workflow.

Removal is real, but it is not trivial

It is important to be realistic here. Parylene removal is possible, but it is not automatically simple, low-risk or suitable in exactly the same way for every assembly. The method depends on the coating, the substrate, the geometry, the access, the areas to be preserved and the purpose of the rework.

For some projects, localised removal makes sense. For others, a full strip may be required. In some cases, the rework route is best used for development learning rather than routine production reprocessing.

That is why good removal work is engineering-led. It is not just about taking coating off. It is about taking coating off in a controlled way that still leaves the product useful for the next step.

Where this applies beyond development

Although this workflow is most commonly used in development, it is also relevant in repair and rework situations. Localised coating removal is often used to enable component replacement, fault investigation or targeted modification.

In these cases, the goal is usually to restore function rather than optimise performance, and the removal approach is typically more controlled and limited in scope.

Full strip and recoat can be considered, but this is often more complex and must be assessed carefully against time, cost and risk. For many assemblies, particularly complex electronics, a targeted rework approach is more practical.

Why this changes the development conversation

When teams understand that coated parts can be stripped, reviewed and recoated, the discussion shifts. Coating stops being a final irreversible event and becomes something that can support iterative engineering.

That can reduce hesitation around trial builds, help teams learn faster from early results and support a more confident development pathway where coating performance is being actively understood rather than assumed.

For wider technical background on removal methods, trade-offs and engineering considerations, see Ultimate Conformal Coating Removal Guide (UK & Europe) and Identify Unknown Conformal Coatings (IPC-7711).

What This Means in Practice

If your coated device does not behave exactly as expected, the next step is not always to abandon the concept or assume the coating has failed. In many cases, the better route is to treat the coated result as a development input, then decide whether strip, modify and recoat work can move the project forward.

This is where rework capability becomes strategically useful. It supports prototyping, tuning, validation and learning, especially when the coating itself changes system behaviour.

For engineering teams, that makes Parylene more than a protective finish. It makes it part of the development process.

Need support with Parylene development, removal or rework?

SCH supports engineering teams with Parylene coating trials, removal assessment, strip and recoat workflows, and development-stage problem solving where protection and system performance need to be considered together.

This can include development support, controlled rework evaluation, and practical guidance on how to move from an unexpected coated result to a better-defined next iteration.

Parylene Coating Services | Removal & Rework Systems | Engineering Consultancy

Note: This insight provides general technical guidance only. Final design, safety, process control, and compliance decisions must be verified by the product manufacturer and validated against the applicable standards and customer requirements.

Parylene does not always behave as a passive protective layer. In capacitive sensor systems, it can change the dielectric environment around the sensing structure and shift electrical behaviour in ways that are technically significant.

This insight highlights a real development reality: even with a stable coating process and correct thickness, capacitance and frequency response can still move because the coating becomes part of the working electrical system.

Quick take. In capacitive sensing systems, Parylene can alter field distribution, dielectric behaviour and output response. Thickness matters, but it does not explain performance on its own. Geometry, coverage and system interaction matter just as much.

Parylene coating can change the dielectric environment around a capacitive sensor, shifting electric field distribution, capacitance and frequency response even when coating thickness is correct.

What we observed

In a recent project involving a capacitive soil sensor, SCH observed measurable changes in operating frequency and capacitance values after Parylene coating. The coating process itself was stable, thickness was verified using witness coupons, and coverage was consistent.

From a coating process perspective, the job looked correct.

However, the coated sensor did not behave in exactly the same way as the uncoated version. That is the important point. The process was controlled, but the system response still shifted.

Why this happens

Parylene is a high-performance dielectric material. In capacitive systems, dielectric properties are not secondary. They directly influence how the device works.

Once applied, the coating can change the electrical environment by altering the effective dielectric constant around the sensor, changing electric field distribution and modifying how the sensor interacts with the surrounding environment.

In simple terms, the coated sensor is no longer operating in the same electrical condition as the uncoated design.

Why thickness alone does not explain performance

One of the most common assumptions is that coating thickness should explain the result. Thicker coating means larger effect. Thinner coating means smaller effect. That sounds logical, but real systems are rarely that simple.

Thickness matters, but it sits inside a broader interaction that can include sensor geometry, electrode spacing, edge coverage, local coating distribution and the final operating environment.

This is why a coating can be within specification and still produce an unexpected electrical outcome. If you want a broader technical view of how thickness should be considered in protective coating strategy, see Parylene Thickness & Environmental Protection: How Much Is Enough?.

Why geometry and coverage matter

Capacitive fields are not distributed evenly. They concentrate around edges, interfaces, exposed conductors and changes in geometry. Parylene follows those features extremely well, which is normally a major advantage.

In electrically sensitive devices, that same conformality means the coating can influence precisely the areas that matter most to performance. Small changes in how the dielectric layer sits across gaps, corners or sensing boundaries can shift field behaviour enough to affect output.

That is one reason why two coatings that look visually identical can still influence electrical behaviour differently in a highly sensitive design.

What this means in development

For capacitive sensors and other field-dependent electronics, coating should not always be treated as a final passive protection step. It often needs to be treated as a design variable that is considered during validation.

That may mean comparing coated and uncoated versions, reviewing whether the geometry makes the design coating-sensitive, and using strip, modify and recoat cycles during optimisation.

If you are weighing coating choice more broadly at system level, it may also be useful to review Parylene vs Conformal Coating Selection Guide.

What This Means in Practice

If a sensor behaves differently after coating, that does not automatically mean something has gone wrong with the process. In many cases, it means the coating has become part of the working electrical system and must be engineered accordingly.

Where development teams need to test, modify and re-evaluate coated parts, SCH can also support removal and rework workflows. For broader background on engineering-led rework, see Ultimate Conformal Coating Removal Guide (UK & Europe).

This is where coating stops being just a protection layer and becomes part of the engineering design conversation.

Need support with Parylene and electrically sensitive devices?

SCH supports development-stage Parylene projects where environmental protection, electrical behaviour and iterative optimisation all need to be considered together.

This can include coating trials, engineering review, strip and recoat work, and support for sensor and electronics development programmes.

Parylene Coating Services | Removal & Rework Systems | Engineering Consultancy

Note: This insight provides general technical guidance only. Final design, safety, process control, and compliance decisions must be verified by the product manufacturer and validated against the applicable standards and customer requirements.

Most conformal coating defects are not caused by the coating. They are caused by what happens before the coating is applied — contamination, poor cleaning, compressed air quality, humidity control and material handling.

If you are troubleshooting recurring coating issues, you can explore the Conformal Coating Defects Hub for detailed root causes and the Conformal Coating Processes Hub for guidance on building stable, repeatable coating systems.

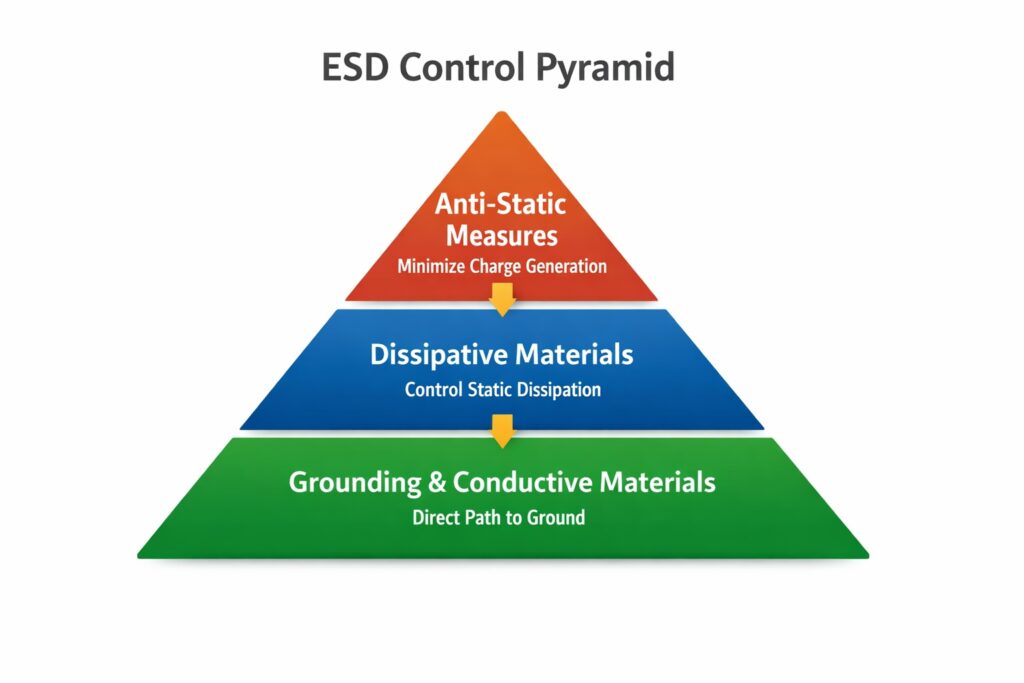

In many cases, risk is also introduced outside the coating process itself — through packaging, storage, handling and wider working environments. This broader system effect is explored in Why ESD Protection Fails in Data Centres, where infrastructure and handling are shown to directly influence reliability outcomes.

This insight highlights a common mistake: when coating results look inconsistent, teams often change materials first, instead of identifying where the process is introducing risk.

Quick take. Most conformal coating problems are caused by contamination, poor cleaning, airborne particles, compressed air quality, humidity variation and incorrect material handling — not the coating chemistry itself.

Most conformal coating defects originate from process issues such as contamination, cleaning, compressed air quality and material handling — not the coating itself.

Why this matters

When an engineering team starts seeing particles trapped in coating, poor edge coverage, bubbles, fisheyes, patchy wetting, or inconsistent finish, the immediate reaction is often to question the coating chemistry. That is understandable because the coating is the visible final layer.

In reality, the coating is often only exposing problems that already existed in the assembly, the environment, or the application method. A conformal coating process only works when the board is genuinely clean, the coating area is controlled, the compressed air is dry and clean, the material is handled correctly, the application method is stable, and inspection is strong enough to catch defects early.

If one of those areas is weak, the whole process can look unreliable even when the coating itself is perfectly suitable.

In many cases, failure is not caused by the coating itself, but by how products are handled, stored, or moved through different environments. This wider-system risk is explored in Why ESD Protection Fails in Data Centres, where packaging, infrastructure and handling are shown to directly influence reliability outcomes.

The pattern we see again and again

Small engineering environments often build a coating process around sensible-looking equipment: a spray gun, a booth, compressed air, some masking, and a curing method. That can be a reasonable starting point, but the hidden weakness is usually not the visible hardware — it is the surrounding discipline.

• Boards may look clean but still carry ionic residues, oils, fingerprints, or solvent traces.
• Spray areas may look tidy but still feed fibres and dust into the wet film.
• Compressed air may appear stable while carrying moisture, oil, or particulates.
• Material handling may drift through poor mixing, pot life overruns, or uncontrolled thinning.
• Inspection may only confirm that the board was coated, not that the coating is actually acceptable.

That combination creates a process that feels unpredictable, even though the real cause is usually poor control rather than poor chemistry.

A more useful way to think about conformal coating

Commercial coating teams often ask, “Can we coat this assembly?” High-reliability teams ask a different question: “Can we prove this coating process is controlled, repeatable, and acceptable?”

That shift in mindset is where better results usually begin.

What This Means in Practice

If this sounds familiar, the next step is not to trial another coating — it is to understand where your process is introducing risk.

If you want a deeper breakdown of how these issues appear in real environments, see Why Conformal Coating Processes Fail in Small Engineering Environments.

For a higher-reliability perspective, including how controlled coating processes are approached in aerospace-style environments, see What NASA Gets Right About Conformal Coating.

This is where many teams benefit from stepping back and reviewing the full coating process rather than changing materials repeatedly.

Note: This insight provides general technical guidance only. Final design, safety, process control, and compliance decisions must be verified by the product manufacturer and validated against the applicable standards and customer requirements.
